MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VISHAYDatasheet (PDF)

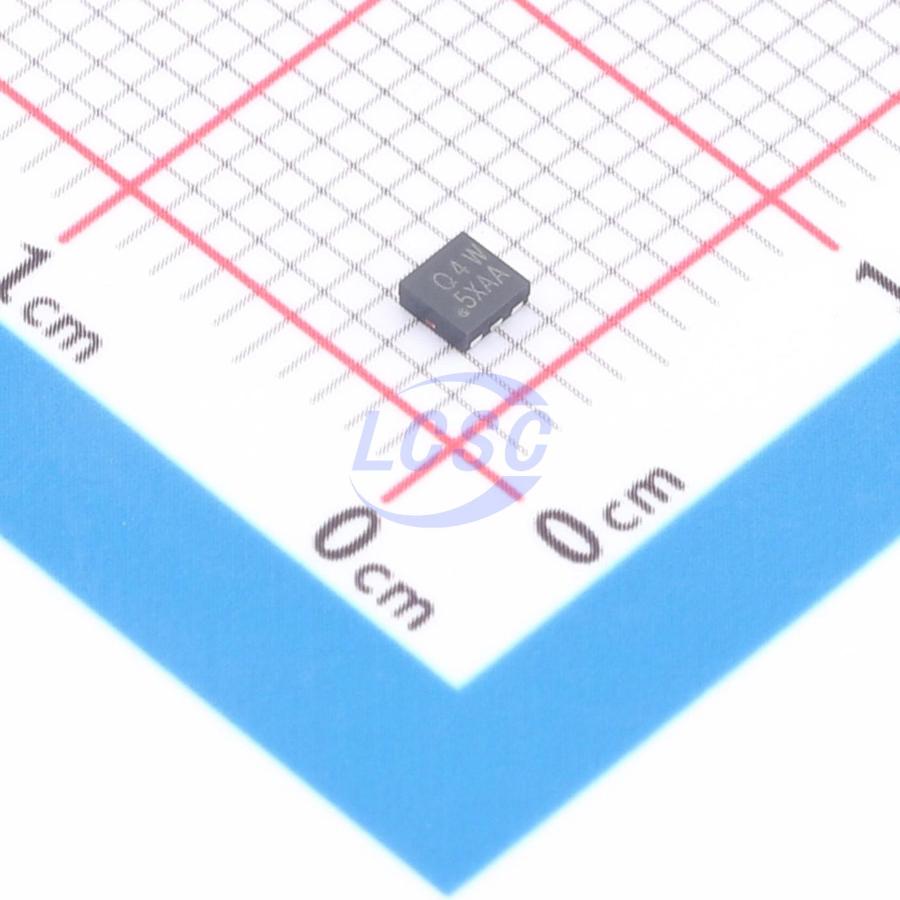

SQA604CEJW-T1_GE3
80V 5.63A 13.6W 80mΩ@10V 1 N-channel SC-70W-6L Single FETs, MOSFETs RoHS
SC-70W-6LROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQA604CEJW-T1_GE3
- Store part #
- C7364361
- Package / case
- SC-70W-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C7364361
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.94 | ₹119.94 |
| 10+ | ₹118.43 | ₹1,184.30 |
| 30+ | ₹117.36 | ₹3,520.80 |
| 100+ | ₹116.29 | ₹11,629.00 |
1 × ₹119.94
₹119.94
excl. GST
₹141.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQA604CEJW-T1_GE3
₹119.94 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 5.63A
- Ciss-Input Capacitance
- 445pF
- Pd - Power Dissipation
- 13.6W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.073 g
Overview
Applications
- Server and telecom power supplies - Switched-mode power supplies (SMPS) - Power factor correction (PFC) - Lighting - High-intensity discharge (HID) lamps - Fluorescent lamp ballasts - Industrial lighting - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (photovoltaic inverters)
Key features
- TrenchFET Power MOSFET
- AEC-Q101 Qualified
- Solderable Gull-Wing Terminals
- RoHS Compliant
- Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK6D81-80EX#C549799Nexperia · DFN-6-MD(2x2) | Nexperia | DFN-6-MD(2x2) | 2 | ₹195.91 · 2 in stock | View |
| CSD19538Q2T#C2859729TI · WSON-6(2x2) | TI | WSON-6(2x2) | 220 | ₹113.86 · 220 in stock | View | |
 | HSCB0010E#C53243993HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 1,210 | ₹29.12 · 1,210 in stock | View |
 | DMT10H032LFDF-7#C5624184DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | On request | ₹110.70 · 0 in stock | View |
| DMT8030LFDF-7#C5245437DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | On request | ₹102.53 · 0 in stock | View | |
