VISHAYDatasheet (PDF)

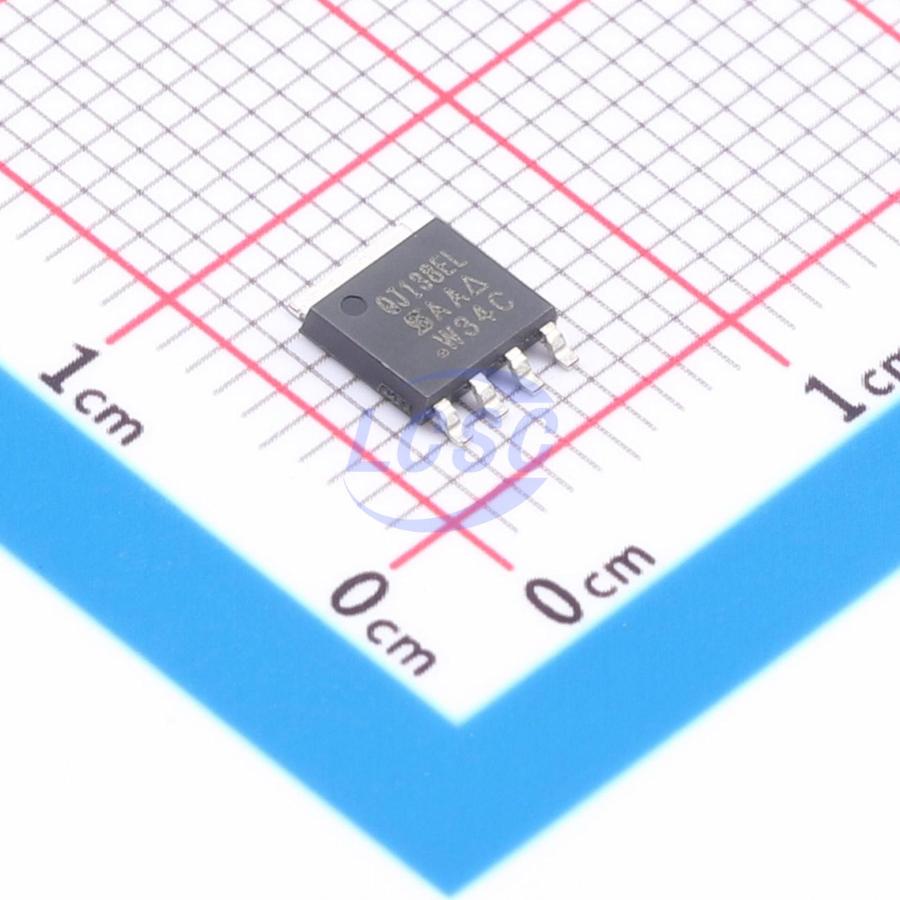

SQJ138ELP-T1_GE3
N-Channel 40V 315A 500W PowerPAKSO-8L
PowerPAKSO-8LROHS3 CompliantActive
MOSFET N-CH 40V 315A PowerPAKSO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ138ELP-T1_GE3
- Store part #
- C3289511
- Package / case
- PowerPAKSO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3289511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.22 | ₹211.22 |
| 10+ | ₹174.49 | ₹1,744.90 |
| 30+ | ₹154.29 | ₹4,628.70 |
| 100+ | ₹131.47 | ₹13,147.00 |
| 500+ | ₹121.25 | ₹60,625.00 |
| 1,000+ | ₹116.69 | ₹1,16,690.00 |
1 × ₹211.22
₹211.22
excl. GST
₹249.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ138ELP-T1_GE3
₹211.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.467nF
- Current - Continuous Drain(Id)
- 315A
- Ciss-Input Capacitance
- 4.775nF
- Pd - Power Dissipation
- 500W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 2.2mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 117nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Synchronous Rectification - Primary-Side Switch - DC/DC Converter - OR-ing - Power Supply - Motor Drive Control - Battery & Load Switch
Key features
- TrenchFET Gen IV power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Qgd/Qgs ratio < 1 optimizes switching characteristics
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJ138EP-T1_GE3#C3279514VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 1,685 | ₹126.43 · 1,685 in stock | View |
 | SQJ160EP-T1_GE3#C3289510VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | On request | ₹360.89 · 0 in stock | View |
