MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VISHAYDatasheet (PDF)

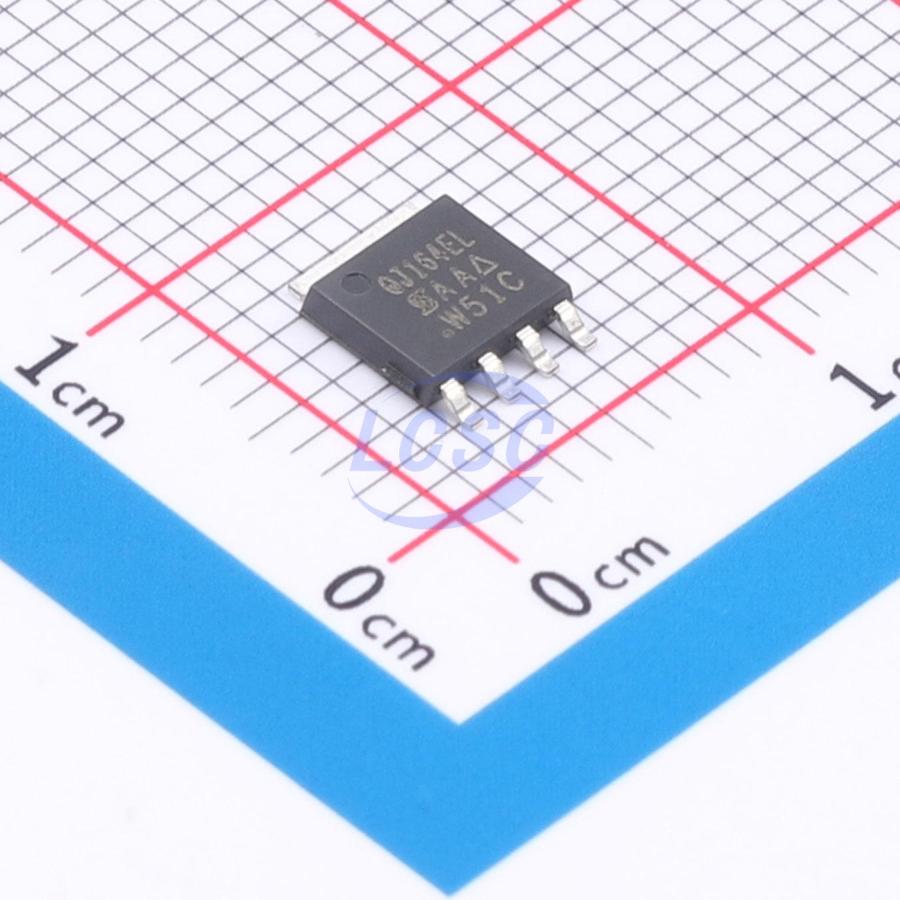

SQJ164ELP-T1_GE3
60V 75A 187W 13mΩ@4.5V 1 N-channel N-Channel PowerPAK-SO-8 Single FETs, MOSFETs RoHS
PowerPAK-SO-8ROHS3 CompliantActive
Automotive N-Channel 60V MOSFET, Current: 75A, Voltage: 60V
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJ164ELP-T1_GE3
- Store part #
- C3279550
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C3279550
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹316.40 | ₹316.40 |
| 10+ | ₹311.45 | ₹3,114.50 |
| 30+ | ₹308.01 | ₹9,240.30 |
| 100+ | ₹304.57 | ₹30,457.00 |
1 × ₹316.40
₹316.40
excl. GST
₹373.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJ164ELP-T1_GE3
₹316.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 2.215nF
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 187W
- Reverse Transfer Capacitance (Crss)
- 283pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 97nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.342 g
Overview
Key features
- 4th generation TrenchFET power MOSFET
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMS86350ET80#C891098onsemi · Power-56-8 | onsemi | Power-56-8 | 2 | ₹1,159.48 · 2 in stock | View |
 | CJAC80SN10#C2913221JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 11,825 | ₹85.04 · 11,825 in stock | View |
 | BSC0702LS(ES)#C42434106ElecSuper · PDFN5x6-8L | ElecSuper | PDFN5x6-8L | 6,600 | ₹71.49 · 6,600 in stock | View |
 | YJG210G06AR#C20605772YANGJIE · PDFN5060-8L | YANGJIE | PDFN5060-8L | 4,843 | ₹144.45 · 4,843 in stock | View |
 | AON6290#C52205209TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 4,926 | ₹115.79 · 4,926 in stock | View |
