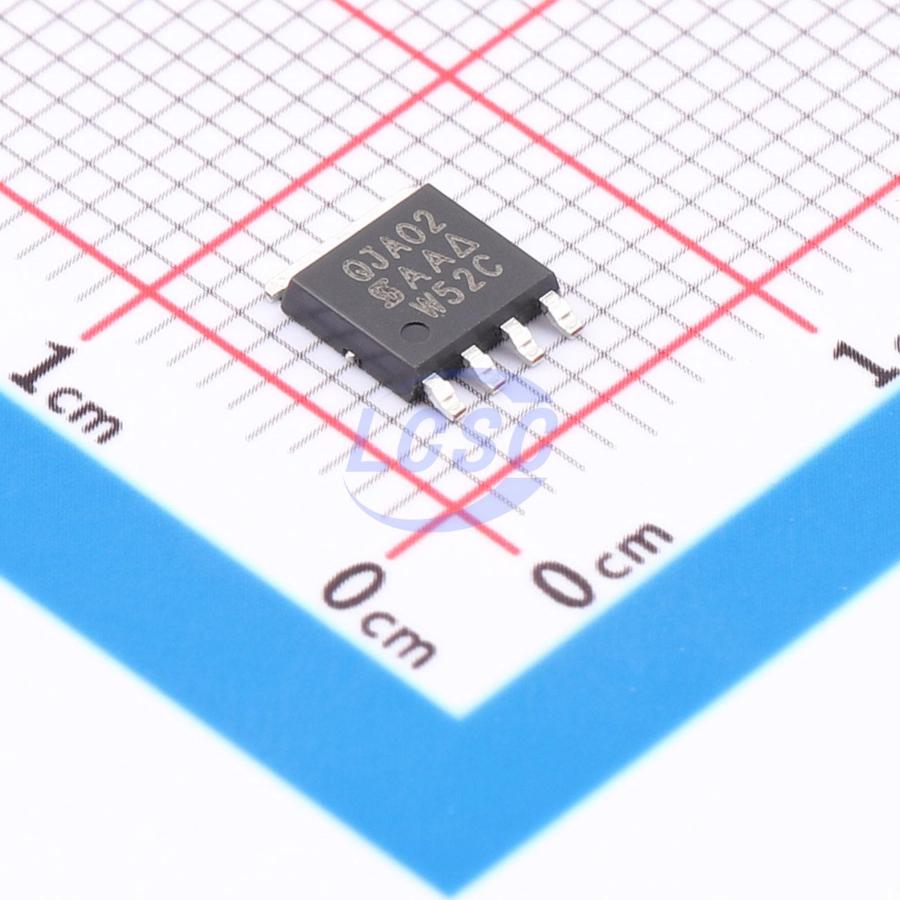

VISHAYDatasheet (PDF)
SQJA02EP-T1_GE3
68W 60V 75A 4.8mΩ@10V 1 N-channel N-Channel PowerPAK-SO-8L Single FETs, MOSFETs RoHS
PowerPAK-SO-8LROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJA02EP-T1_GE3
- Store part #
- C727754
- Package / case
- PowerPAK-SO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C727754
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹183.87 | ₹183.87 |
| 10+ | ₹152.86 | ₹1,528.60 |
| 30+ | ₹135.95 | ₹4,078.50 |
| 100+ | ₹116.65 | ₹11,665.00 |
| 500+ | ₹107.98 | ₹53,990.00 |
| 1,000+ | ₹104.29 | ₹1,04,290.00 |
1 × ₹183.87
₹183.87
excl. GST
₹216.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQJA02EP-T1_GE3
₹183.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.4nF
- Ciss-Input Capacitance
- 4.7nF
- Pd - Power Dissipation
- 68W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.57 g
Overview
Key features
- Trench power MOSFET
- AEC-Q101 qualified
- 100% Rg and UIS tested
- RoHS compliant and halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SQJA04EP-T1_GE3#C727683VISHAY · PowerPAK-SO-8L | VISHAY | PowerPAK-SO-8L | On request | ₹134.18 · 0 in stock | View | |
