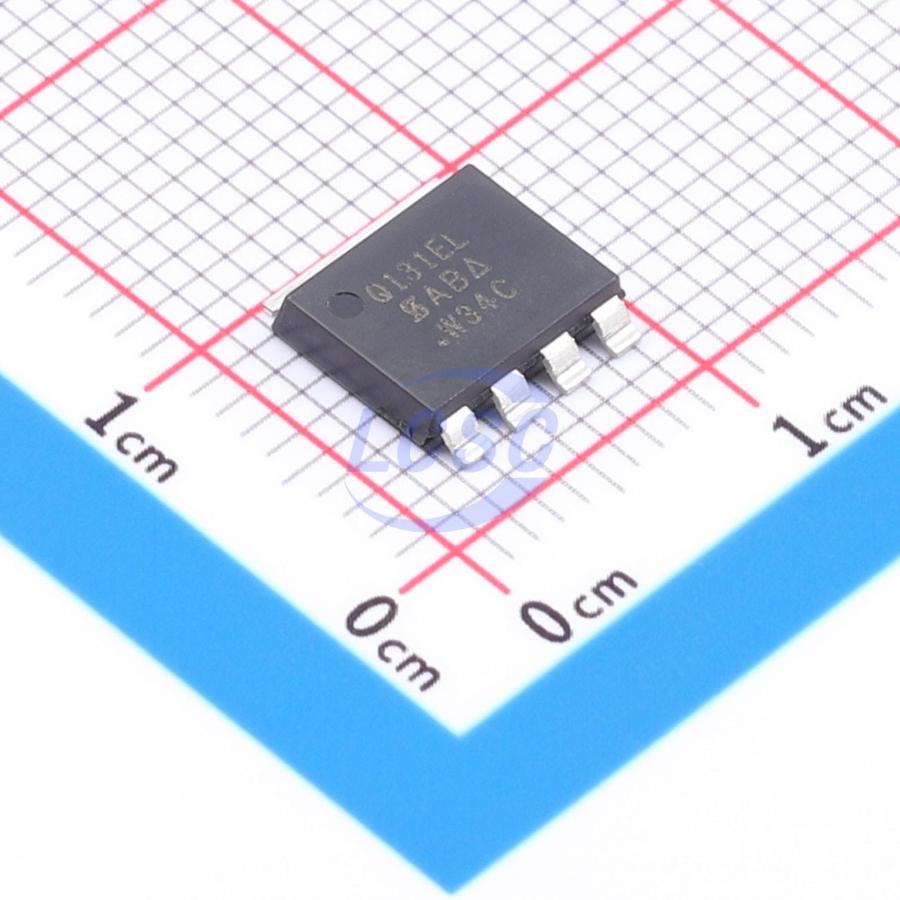

SQJQ131EL-T1_GE3
P-Channel 30V 280A 600W PowerPAK-5(8x8)
PowerPAK-5(8x8)ROHS3 CompliantActive
MOSFET P-CH 30V 280A PowerPAK-5(8x8)
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJQ131EL-T1_GE3
- Store part #
- C3289450
- Package / case
- PowerPAK-5(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C3289450
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹566.44 | ₹566.44 |
| 10+ | ₹557.09 | ₹5,570.90 |
| 30+ | ₹550.79 | ₹16,523.70 |
| 100+ | ₹544.71 | ₹54,471.00 |
1 × ₹566.44
₹566.44
excl. GST
₹668.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SQJQ131EL-T1_GE3
₹566.44 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 3.42nF
- Current - Continuous Drain(Id)
- 280A
- Ciss-Input Capacitance
- 33.05nF
- Pd - Power Dissipation
- 600W
- Reverse Transfer Capacitance (Crss)
- 3.174nF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 731nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- Synchronous rectification
- Primary-side switching
- DC/DC converters
- Solar micro-inverters
- Motor drive switching
- Battery and load switching
- Industrial applications
Key features
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Thin 1.6 mm package
- Very low thermal resistance
