VISHAYDatasheet (PDF)

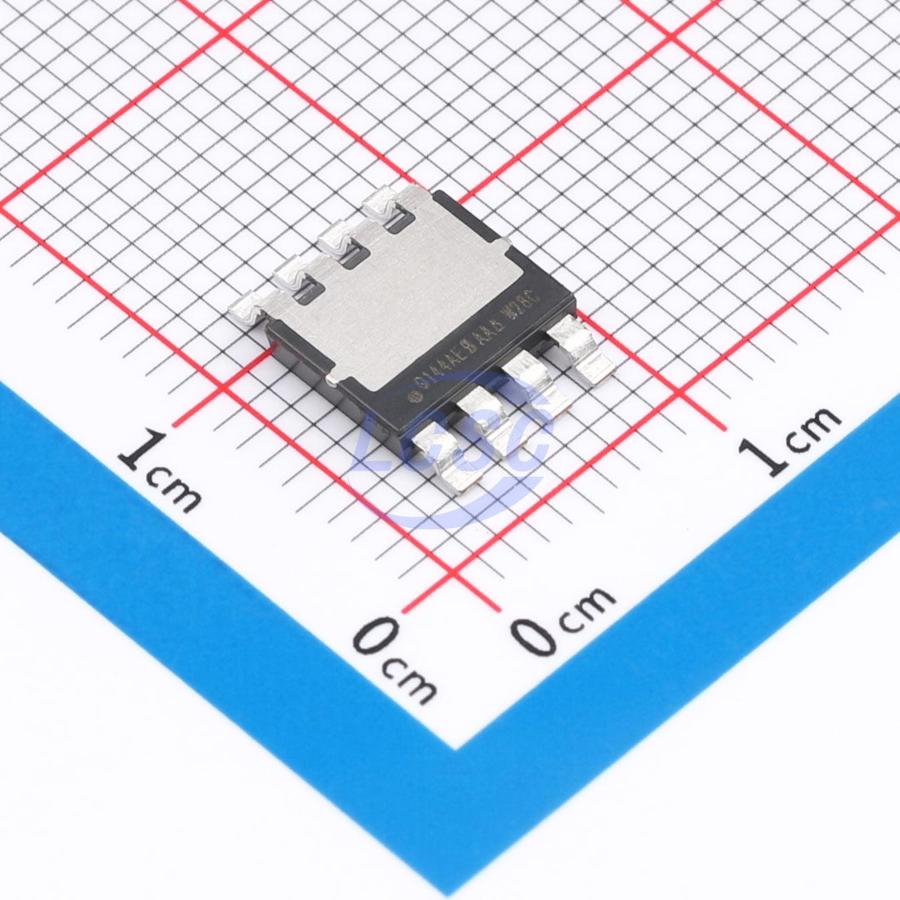

SQJQ144AER-T1_GE3
N-Channel 40V 575A 600W PowerPAK8x8LR
PowerPAK8x8LRROHS3 CompliantActive
MOSFET N-CH 40V 575A PowerPAK8x8LR
- Manufacturer
- VISHAY
- Manufacturer part #
- SQJQ144AER-T1_GE3
- Store part #
- C6230440
- Package / case
- PowerPAK8x8LR
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6230440
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.38 | ₹233.38 |
| 10+ | ₹227.30 | ₹2,273.00 |
| 30+ | ₹223.39 | ₹6,701.70 |
| 100+ | ₹219.47 | ₹21,947.00 |
1 × ₹233.38
₹233.38
excl. GST
₹275.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SQJQ144AER-T1_GE3
₹233.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 2.29nF
- Current - Continuous Drain(Id)
- 575A
- Ciss-Input Capacitance
- 9.02nF
- Pd - Power Dissipation
- 600W
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 0.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 145nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
Key features
- TrenchFET Gen IV power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Thin 1.6 mm package
- Very low thermal resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJQ144AE-T1_GE3#C5924525VISHAY · PowerPAK8x8L | VISHAY | PowerPAK8x8L | On request | ₹346.68 · 0 in stock | View |
