VISHAYDatasheet (PDF)

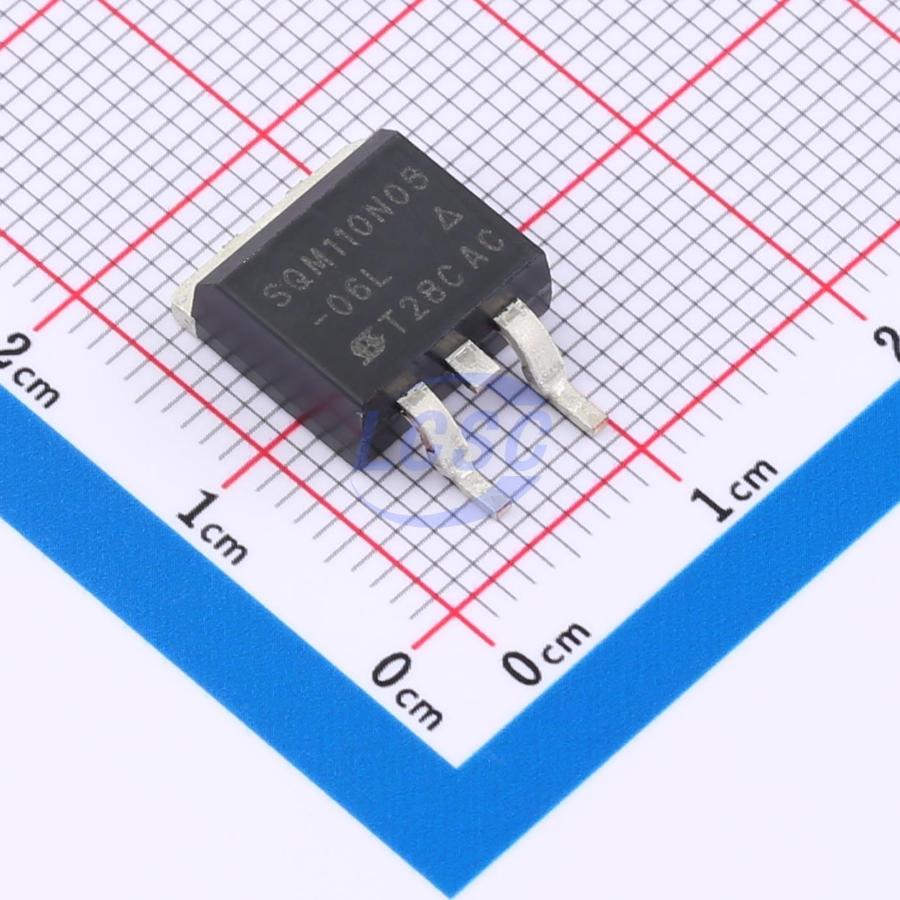

SQM110N05-06L_GE3
55V 110A 157W 6mΩ@10V 1 N-channel TO-263(D2PAk) Single FETs, MOSFETs RoHS
TO-263(D2PAk)ROHS3 CompliantActive
MOSFET N-CH 55V 110A TO-263(D2PAk)
- Manufacturer
- VISHAY
- Manufacturer part #
- SQM110N05-06L_GE3
- Store part #
- C7318465
- Package / case
- TO-263(D2PAk)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7318465
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹996.03 | ₹996.03 |
| 10+ | ₹982.92 | ₹9,829.20 |
| 30+ | ₹974.10 | ₹29,223.00 |
| 100+ | ₹965.29 | ₹96,529.00 |
1 × ₹996.03
₹996.03
excl. GST
₹1,175.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
SQM110N05-06L_GE3
₹996.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 110A
- Pd - Power Dissipation
- 157W
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.007 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent lamp ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
- Solar (photovoltaic inverters)
Key features
- Compliant with halogen-free requirements per IEC 61249-2-21
- TrenchFET power MOSFET
- Low thermal resistance package
- AEC-Q101 qualified
- 100% tested for Rg and UIS
- RoHS compliant per directive 2002/95/EC
