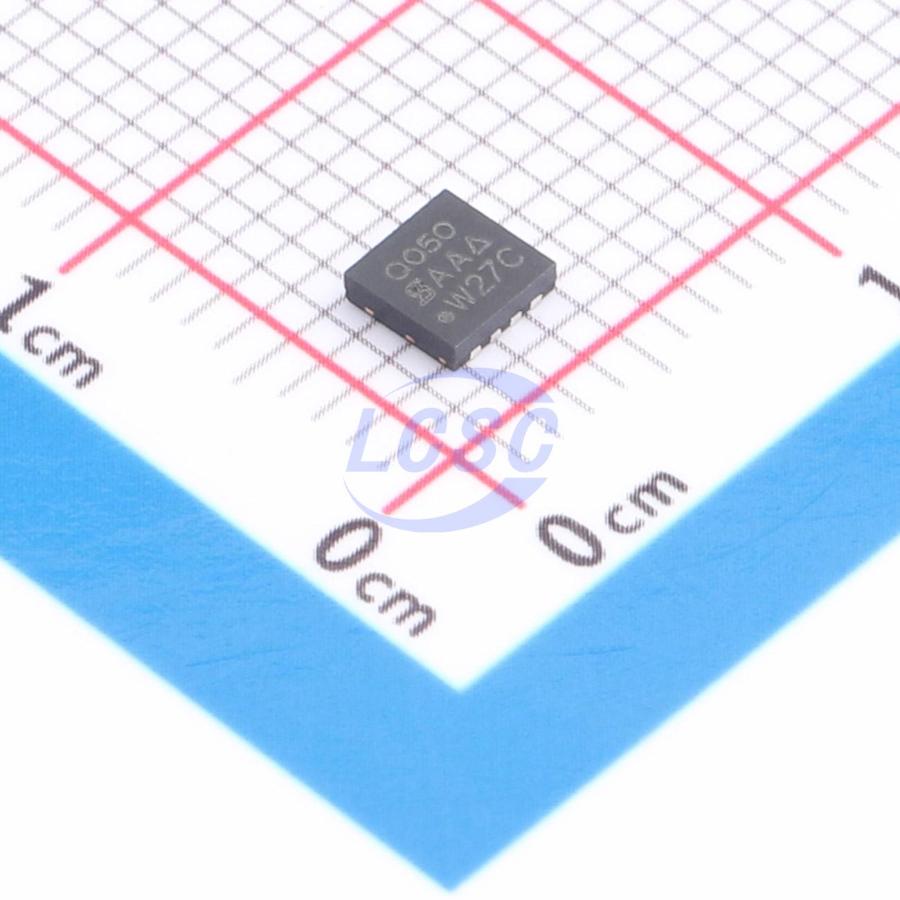

SQS142ELNW-T1_GE3
N-Channel 40V 86A 70W Surface Mount PowerPAK1212-8S
PowerPAK1212-8SROHS3 CompliantActive
MOSFET N-CH 40V 86A PowerPAK1212-8S
- Manufacturer
- VISHAY
- Manufacturer part #
- SQS142ELNW-T1_GE3
- Store part #
- C18197889
- Package / case
- PowerPAK1212-8S
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C18197889
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.51 | ₹113.51 |
| 10+ | ₹91.25 | ₹912.50 |
| 30+ | ₹80.00 | ₹2,400.00 |
| 100+ | ₹68.76 | ₹6,876.00 |
| 500+ | ₹62.27 | ₹31,135.00 |
| 1,000+ | ₹58.81 | ₹58,810.00 |
1 × ₹113.51
₹113.51
excl. GST
₹133.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQS142ELNW-T1_GE3
₹113.51 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 619pF
- Current - Continuous Drain(Id)
- 86A
- Ciss-Input Capacitance
- 2.442nF
- Pd - Power Dissipation
- 70W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.358 g
Overview
This N-channel MOSFET employs advanced SGT technology and design to achieve excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Key features
- TrenchFET Gen IV power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- Wettable flank terminals
- Low thermal resistance with 0.75 mm profile
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSC055N06#C45385348Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 50 | ₹52.52 · 50 in stock | View |
 | XRS120N04D#C50314144XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 4,935 | ₹35.93 · 4,935 in stock | View |
 | NTTFS2D1N04HLTWG#C894100onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 1 | ₹500.76 · 1 in stock | View |
 | XRS100N06LD#C42457038XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 5,165 | ₹43.75 · 5,165 in stock | View |
| SQS174ELNW-T1-GE3#C27162878VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 35 | ₹181.41 · 35 in stock | View | |
