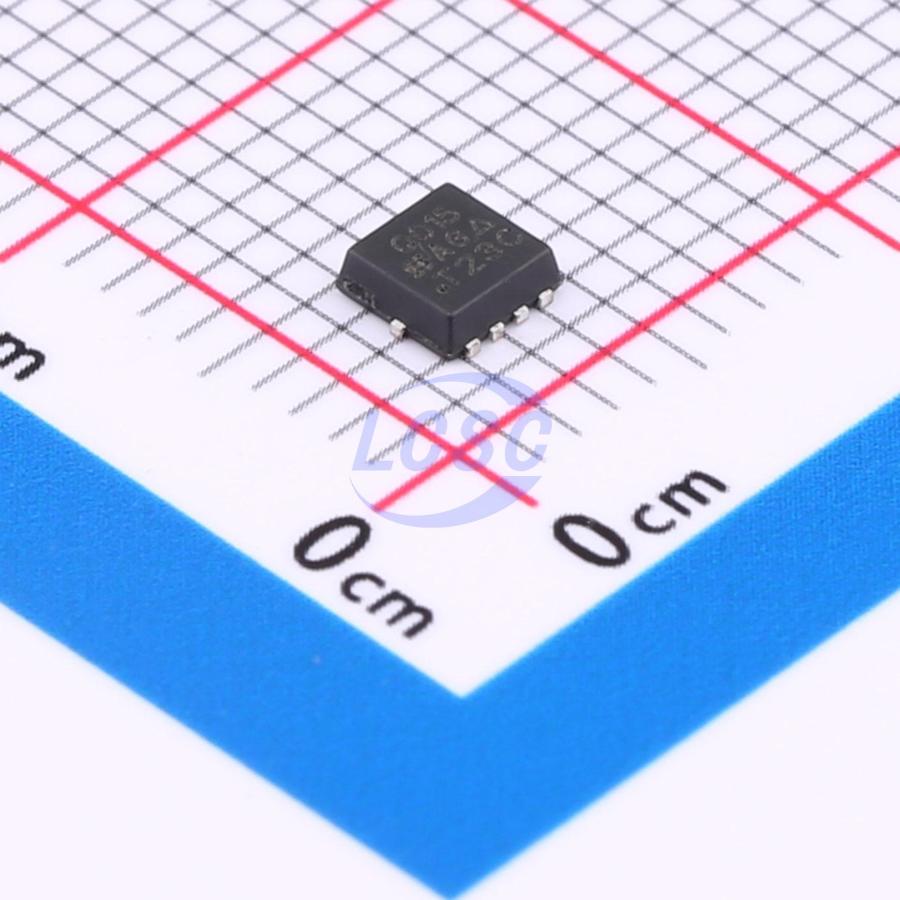

SQS460EN-T1_BE3
N-Channel 60V 8A 39W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 60V 8A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQS460EN-T1_BE3
- Store part #
- C3279450
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C3279450
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.85 | ₹150.85 |
| 10+ | ₹124.60 | ₹1,246.00 |
| 30+ | ₹110.18 | ₹3,305.40 |
| 100+ | ₹93.83 | ₹9,383.00 |
| 500+ | ₹86.51 | ₹43,255.00 |
| 1,000+ | ₹83.28 | ₹83,280.00 |
1 × ₹150.85
₹150.85
excl. GST
₹178.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQS460EN-T1_BE3
₹150.85 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 113pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 755pF
- Pd - Power Dissipation
- 39W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 48mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
Automotive N-Channel 60 V (D-S) 175 °C MOSFET
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
