VISHAYDatasheet (PDF)

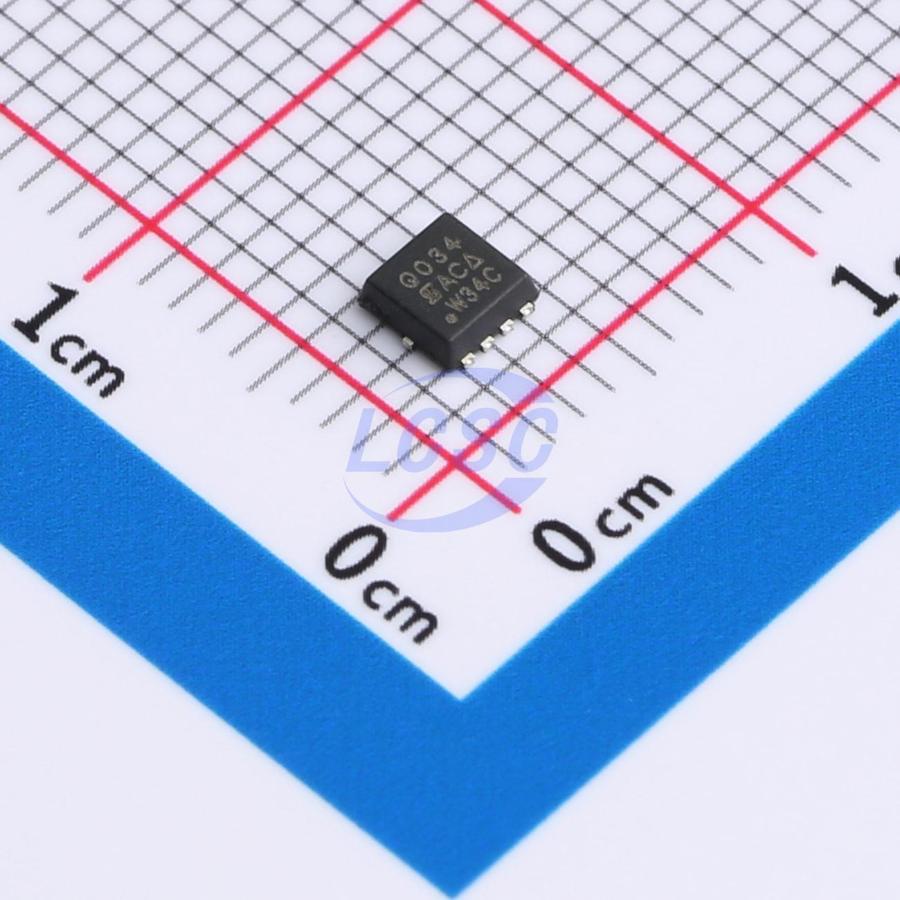

SQS482ENW-T1_GE3
N-Channel 30V 16A 20W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 16A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQS482ENW-T1_GE3
- Store part #
- C727494
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C727494
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.02 | ₹73.02 |
| 10+ | ₹71.39 | ₹713.90 |
| 30+ | ₹70.37 | ₹2,111.10 |
| 100+ | ₹69.15 | ₹6,915.00 |
1 × ₹73.02
₹73.02
excl. GST
₹86.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQS482ENW-T1_GE3
₹73.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 280pF
- Ciss-Input Capacitance
- 1.492nF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 16A
- Reverse Transfer Capacitance (Crss)
- 108pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FH1404G6#C2940036XIN FEI HONG · PDFN-8L(3.3x3.3) | XIN FEI HONG | PDFN-8L(3.3x3.3) | 5,040 | ₹24.17 · 5,040 in stock | View |
 | FH8904G6#C2929014XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 8,143 | ₹13.97 · 8,143 in stock | View |
 | FH1304GS6#C5453922XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 4,965 | ₹19.67 · 4,965 in stock | View |
 | LWN3016AD3#C54221212Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 4,900 | ₹17.20 · 4,900 in stock | View |
 | SI7112DN-T1-GE3#C2926777VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2,585 | ₹162.04 · 2,585 in stock | View |
