VISHAYDatasheet (PDF)

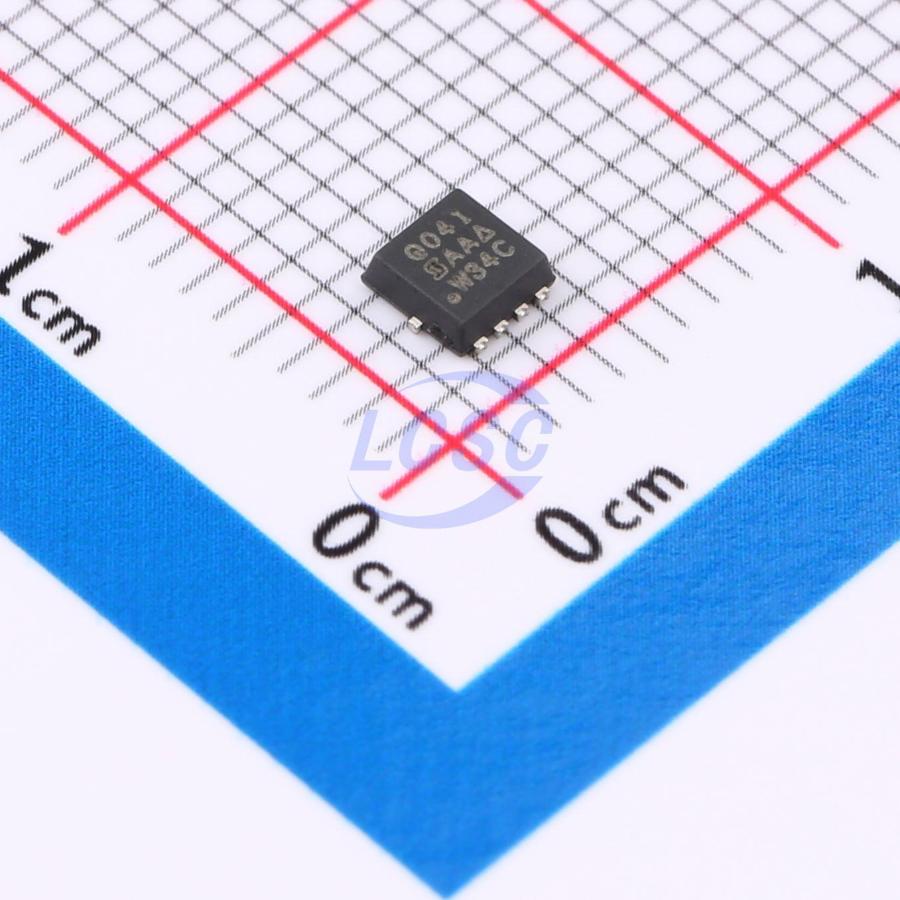

SQS840CENW-T1_GE3
40V 12A 33W 20mΩ@10V 1 N-channel N-Channel PowerPAK1212-8W Single FETs, MOSFETs RoHS
PowerPAK1212-8WROHS3 CompliantActive
Automotive, Current:12A, Voltage:40V
- Manufacturer
- VISHAY
- Manufacturer part #
- SQS840CENW-T1_GE3
- Store part #
- C3279468
- Package / case
- PowerPAK1212-8W
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3279468
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.73 | ₹153.73 |
| 10+ | ₹129.44 | ₹1,294.40 |
| 30+ | ₹117.30 | ₹3,519.00 |
| 100+ | ₹105.17 | ₹10,517.00 |
| 500+ | ₹98.01 | ₹49,005.00 |
| 1,000+ | ₹94.32 | ₹94,320.00 |
1 × ₹153.73
₹153.73
excl. GST
₹181.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQS840CENW-T1_GE3
₹153.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 164pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.031nF
- Pd - Power Dissipation
- 33W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
Overview
N-channel 40V (drain-to-source) fast switching MOSFET in a PowerPAK 1212-8 package with ultra-low thermal resistance, designed for space-constrained applications. This package technology maximizes die area with an exposed pad on the bottom of the die, providing a direct, low-resistance thermal path to the mounting substrate. The footprint is comparable to TSOP-6, more than 40% smaller than standard TSSOP-8, with more than twice the die capacity of standard TSOP-6, thermal performance an order of magnitude better than SO-8, and 20x better than TSSOP-8.
Applications
- Synchronous Rectification - Intermediate Switch - Synchronous Buck
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant and halogen-free
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQS840EN-T1_GE3#C727476VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 728 | ₹86.72 · 728 in stock | View |
 | SQSA84CENW-T1_GE3#C20346183VISHAY · PowerPAK1212-8W | VISHAY | PowerPAK1212-8W | 2,614 | ₹88.30 · 2,614 in stock | View |
 | SQSA80ENW-T1_GE3#C511563VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 1,381 | ₹141.93 · 1,381 in stock | View |
 | XR40N06D#C42456820XNRUSEMI · PDFN3333-8L | XNRUSEMI | PDFN3333-8L | 1,860 | ₹16.42 · 1,860 in stock | View |
 | SQ7414CENW-T1_GE3#C727497VISHAY · PowerPAK-1212-8W | VISHAY | PowerPAK-1212-8W | 33,358 | ₹65.33 · 33,358 in stock | View |
