TECH PUBLICDatasheet (PDF)

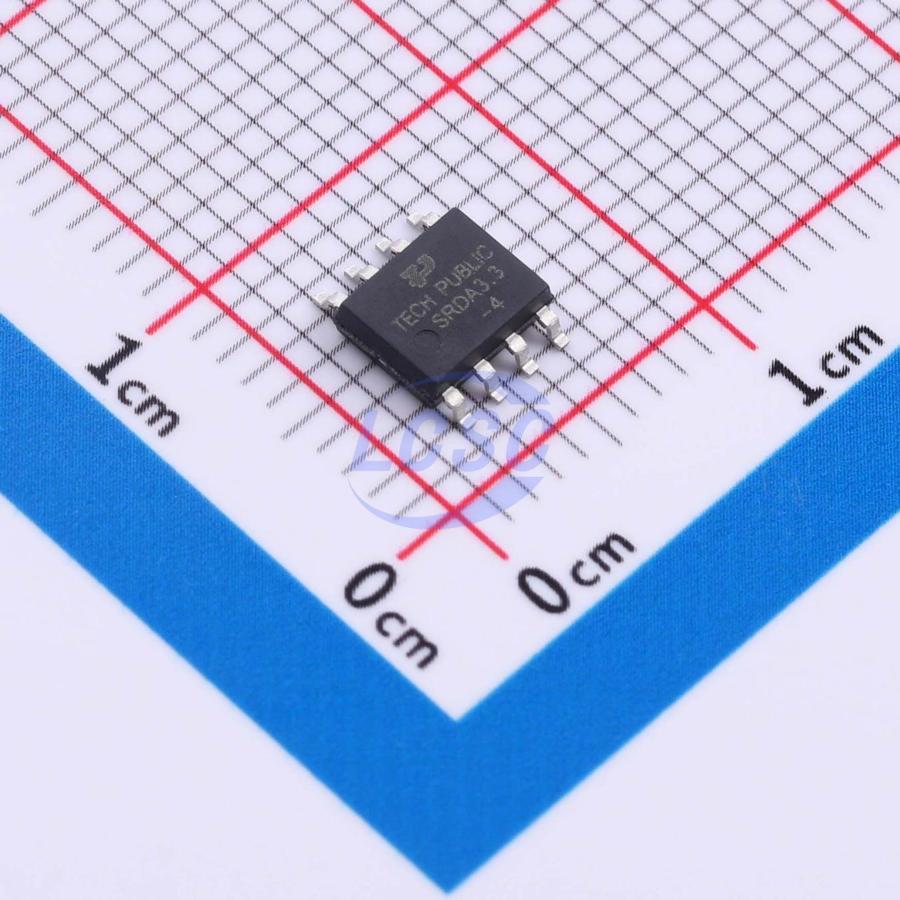

SRDA3.3-4BTG(TP)
15V 25A@8/20us 500W@8/20us 4.5V Unidirectional 3.3V SOP-8 TVS Diodes
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SRDA3.3-4BTG(TP)
- Store part #
- C52098185
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,345 in stock
#C52098185
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.62 | ₹93.62 |
| 10+ | ₹75.24 | ₹752.40 |
| 30+ | ₹65.94 | ₹1,978.20 |
| 100+ | ₹56.86 | ₹5,686.00 |
| 500+ | ₹51.24 | ₹25,620.00 |
| 1,000+ | ₹48.44 | ₹48,440.00 |
1 × ₹93.62
₹93.62
excl. GST
₹110.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SRDA3.3-4BTG(TP)
₹93.62 for 1 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 4.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SRDA3.3-4(TP)#C52098184TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,614 | ₹93.64 · 3,614 in stock | View |
 | STSP84033U800-TP#C55191086TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 200 | ₹93.89 · 200 in stock | View |
