TECH PUBLIC

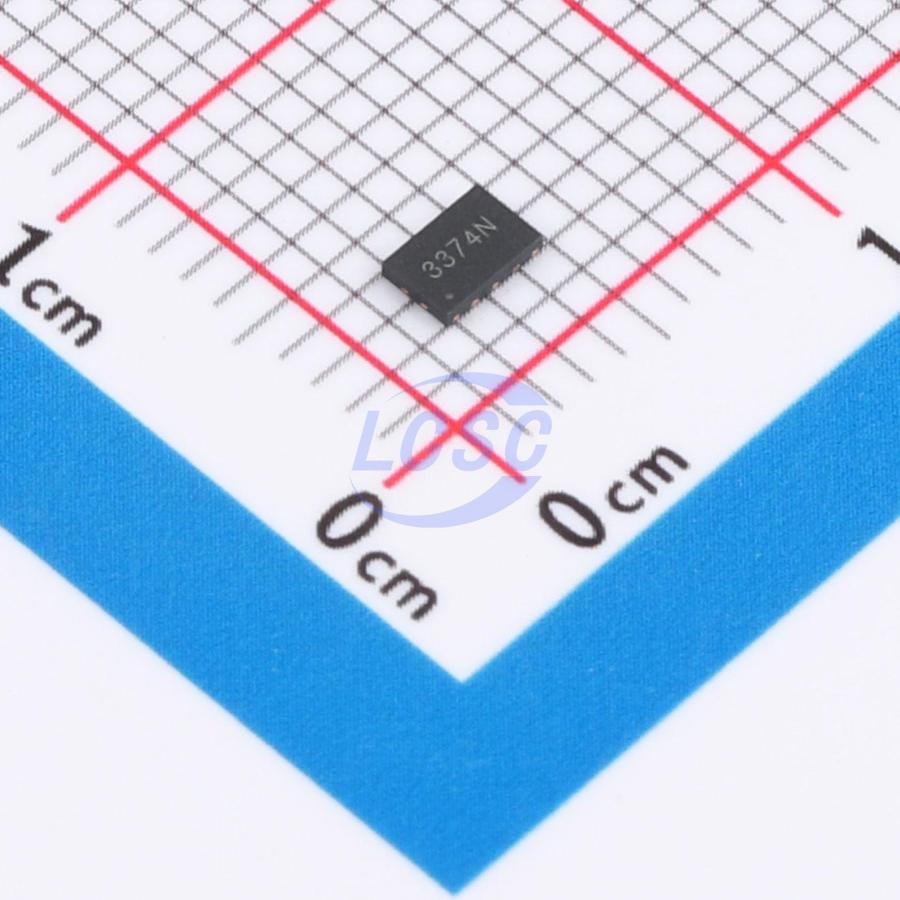

SRV25-4LC(TP)

18V 25A@8/20us 400W@8/20us 3.5V Unidirectional 2.5V DFN3020-10 TVS Diodes

DFN3020-10RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SRV25-4LC(TP)
Store part #: C52098191
Package / case: DFN3020-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,782 in stock

#C52098191

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹78.52	₹78.52
10+	₹63.54	₹635.40
30+	₹55.94	₹1,678.20
100+	₹48.55	₹4,855.00
500+	₹44.12	₹22,060.00
1,000+	₹41.79	₹41,790.00

Quantity (min 1)

1 × ₹78.52

₹78.52

excl. GST

₹92.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SRV25-4LC(TP)

₹78.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 25A@8/20us
Peak Pulse Power Dissipation (Ppp): 400W@8/20us
Voltage - Breakdown: 3.5V
Number of Channels: Four channels
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 2.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.031 g

Overview

Applications

Digital Video Interface (DVI)
Projection TV monitors and flat panel displays
Notebook computers
Set-top boxes
Projection TVs

Key features

Low operating voltage: 2.5V
Ultra-low capacitance: 5pF (max)
Ultra-low leakage: nanoamp-level
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC61000-4- (Lightning Surge) 25A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS compliant
Lead finish: Nickel Palladium Gold
