VBsemi ElecDatasheet (PDF)

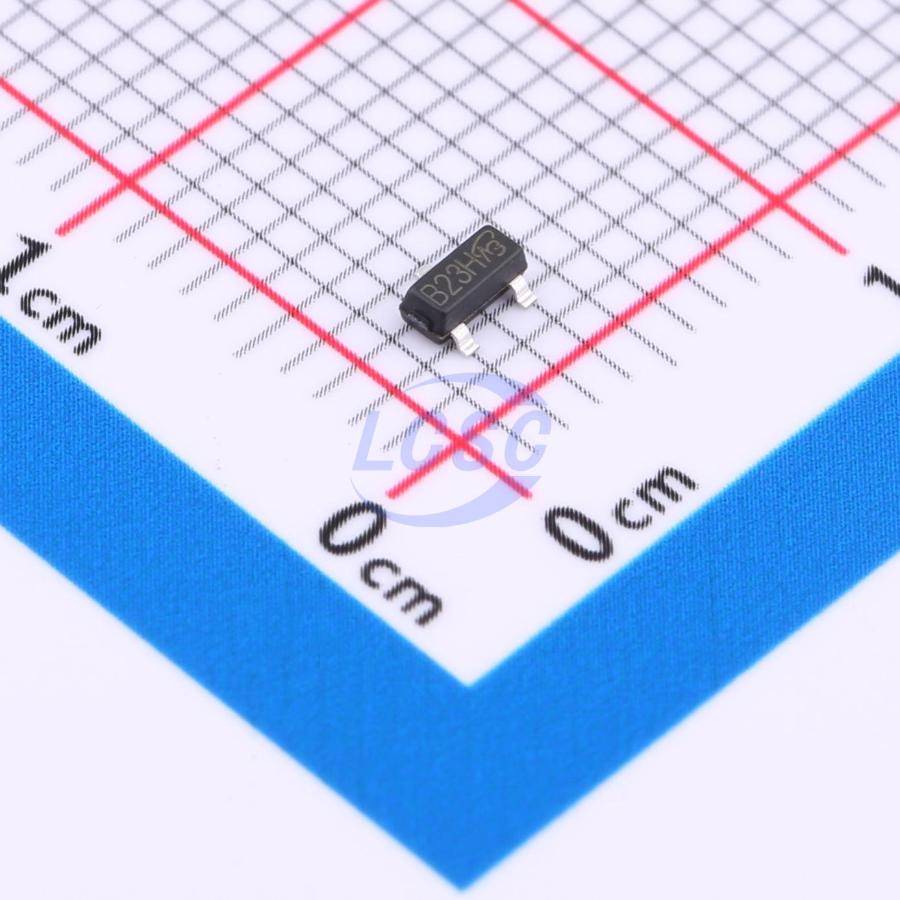

SSM3J01F-VB
P-Channel 30V 5.6A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 30V 5.6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSM3J01F-VB
- Store part #
- C7494443
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C7494443
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.10 | ₹65.50 |
| 50+ | ₹10.43 | ₹521.50 |
| 150+ | ₹9.09 | ₹1,363.50 |
| 500+ | ₹8.10 | ₹4,050.00 |
| 3,000+ | ₹7.29 | ₹21,870.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹13.10
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSM3J01F-VB
₹65.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 46mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook power adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GV3407-VB#C5179547VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 335 | ₹12.83 · 335 in stock | View |
 | DMP3099L-7-VB#C558116VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 65 | ₹14.58 · 65 in stock | View |
 | IRLML9301TRPBF-VB#C6705286VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 410 | ₹12.87 · 410 in stock | View |
 | Si2399CDS-T1-GE3-VB#C6705310VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 1,400 | ₹12.45 · 1,400 in stock | View |
 | RRR040P03TL-VB#C710055VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 445 | ₹12.89 · 445 in stock | View |
