VBsemi ElecDatasheet (PDF)

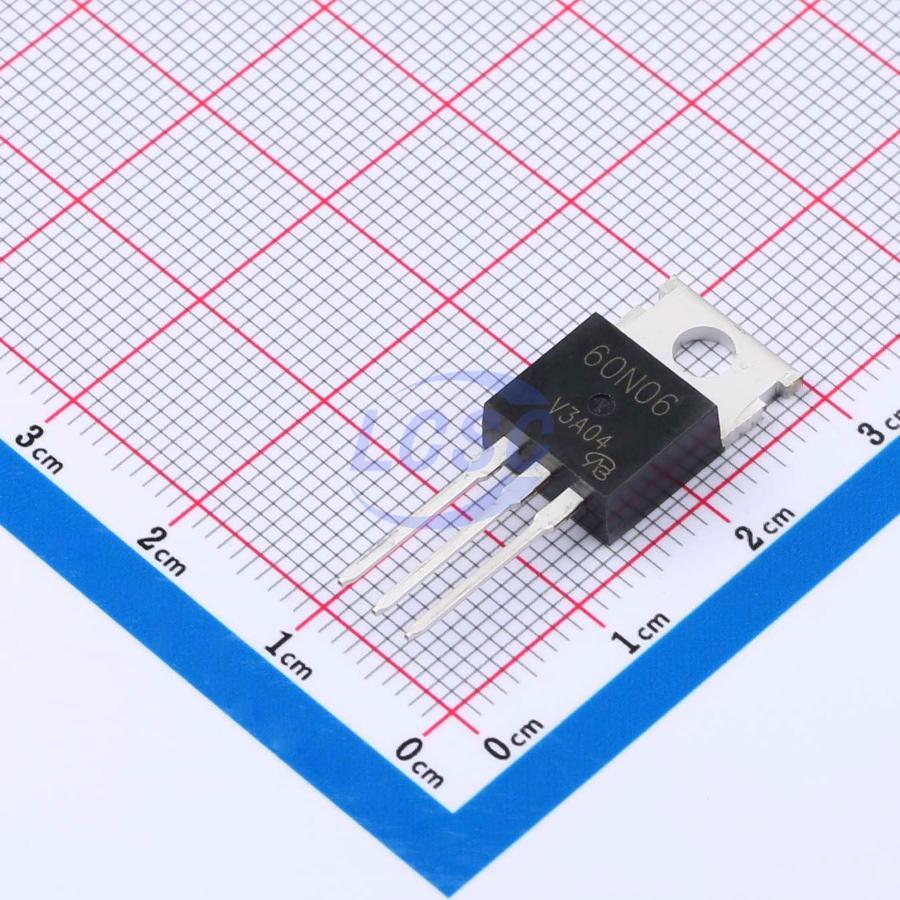

SSP60N06-VB
N-Channel 60V 60A 136W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 60A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSP60N06-VB
- Store part #
- C2680797
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2680797
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.87 | ₹105.87 |
| 10+ | ₹85.70 | ₹857.00 |
| 50+ | ₹75.62 | ₹3,781.00 |
| 100+ | ₹65.75 | ₹6,575.00 |
| 500+ | ₹59.87 | ₹29,935.00 |
| 1,000+ | ₹56.72 | ₹56,720.00 |
1 × ₹105.87
₹105.87
excl. GST
₹124.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SSP60N06-VB
₹105.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 4.2nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.706 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- N-channel MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 60N06 TO220-VB#C19188176VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹106.49 · 50 in stock | View |
 | AUIRFZ48Z-VB#C19188263VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹107.14 · 20 in stock | View |
 | SUP70N06-14-VB#C19190108VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹107.14 · 9 in stock | View |
 | QM6006P-VB#C19626741VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹107.14 · 50 in stock | View |
 | BUK556-60H-VB#C19632096VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹102.93 · 4 in stock | View |
