SSP8613

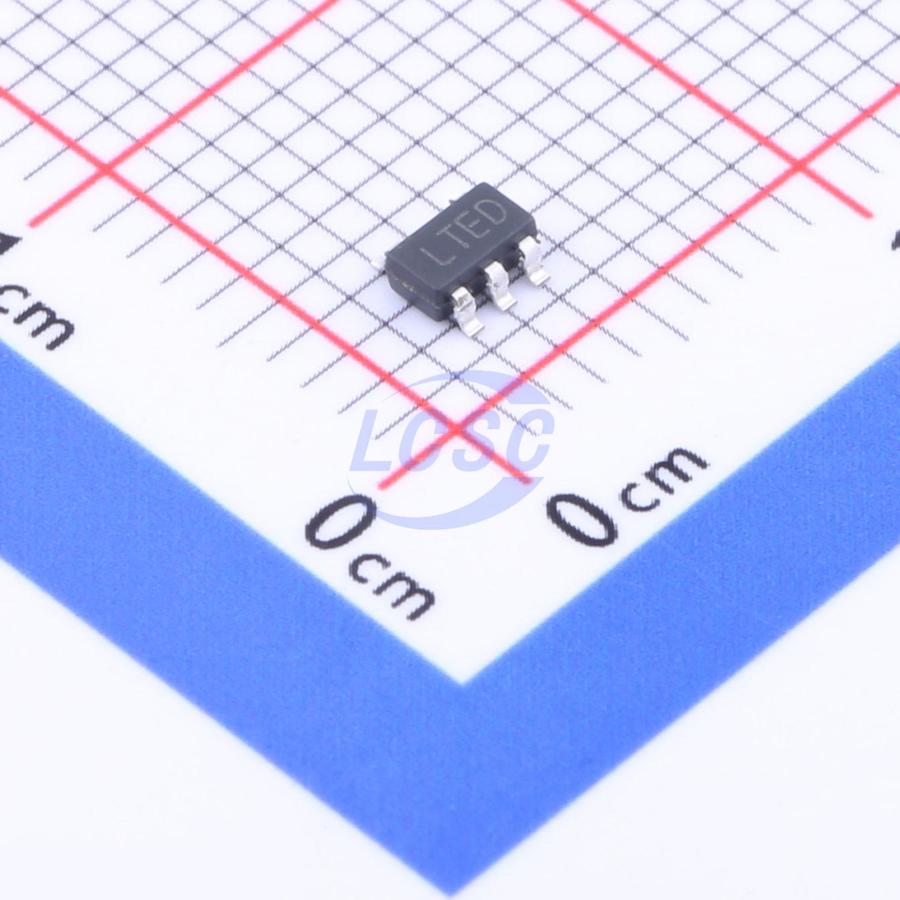

The SSP8613 is a 5-lead SOT-23 current mode DC/DC converter. Intended for small, low power applications, it operates from an input voltage as low as 1.1V and switches at 1.4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Its small size and high switching frequency enables the complete DC/DC converter function to take up less than 0.2 square inches of PC board area. Multiple output power supplies can now use a separate regulator for each output voltage, replacing cumbersome quasi-regulated approaches using a single regulator and a custom transformer. A constant frequency, internally compensated current mode PWM architecture results in low, predictable output noise that is easy to filter. The high voltage switch on the SSP8613 is rated at 36V, making the device ideal for boost converters up to 34V as well as for Single-Ended Primary Inductance Converter (SEPIC) and flyback designs. The device can generate 5V at up to 200mA from a 3.3V supply or 5V at 175mA from four alkaline cells in a SEPIC design. The SSP8613 is available in the 5-lead SOT-23 package.

Applications

• Digital Cameras
• Pagers
• Cordless Phones
• Battery Backup
• LCD Bias
• Medical Diagnostic Equipment
• Local 5V or 12V Supply
• External Modems
• PC Cards

Key features

• Uses Tiny Capacitors and Inductor
• Internally Compensated
• Fixed Frequency 1.4MHz Operation
• Operates with VIN as Low as 1.1V
• 3V at 30mA from a Single Cell
• 5V at 200mA from 3.3V Input
• 15V at 60mA from Four Alkaline Cells
• High Output Voltage: Up to 34V
• Low Shutdown Current: <1mA
• Low VCESAT Switch: 300mV at 300mA
• Tiny 5-Lead SOT-23 Package
