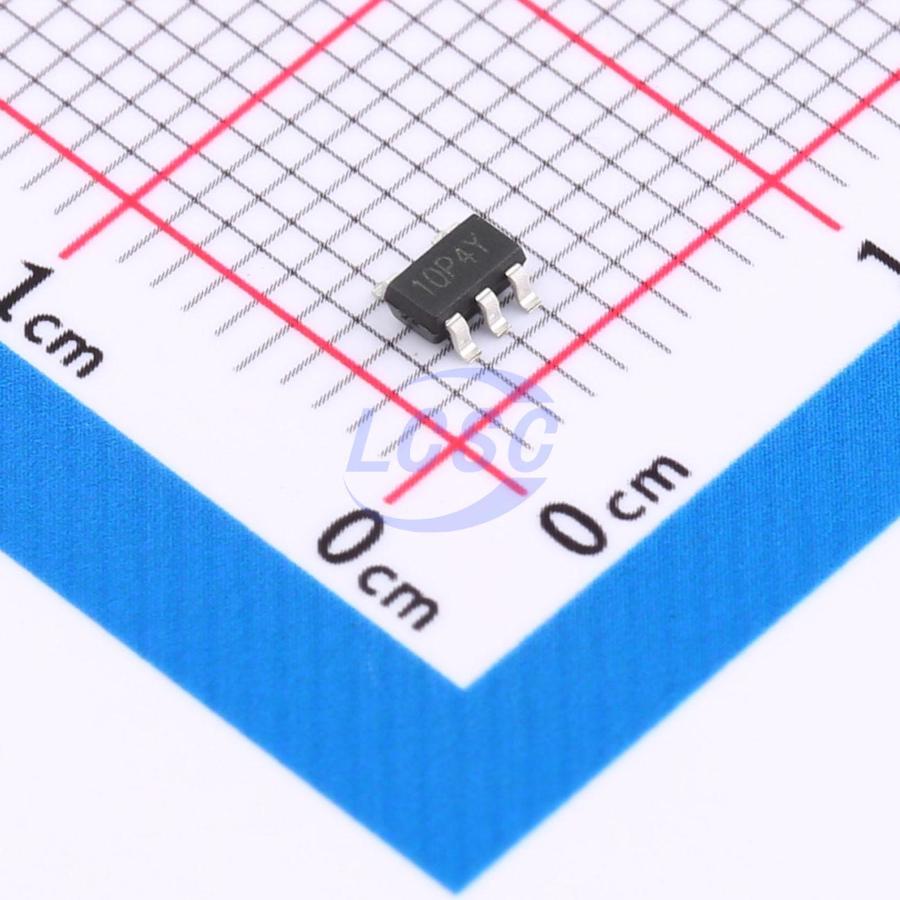

SiproinDatasheet (PDF)
SSP9301
Step-down type 1.5MHz Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- Siproin
- Manufacturer part #
- SSP9301
- Store part #
- C49331832
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C49331832
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.00 | ₹80.00 |
| 200+ | ₹3.12 | ₹624.00 |
| 600+ | ₹2.63 | ₹1,578.00 |
| 3,000+ | ₹2.34 | ₹7,020.00 |
| 9,000+ | ₹2.09 | ₹18,810.00 |
| 21,000+ | ₹1.96 | ₹41,160.00 |
20 × ₹4.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP9301
₹80.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Output discharge
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.044 g
Overview
SSP9301 is a compact 5V step-down converter capable of delivering 1A output current. The device employs a proprietary control loop to achieve fast transient load response while maintaining high conversion efficiency under both light and heavy load conditions. SSP9301 features multiple protection functions, including input overvoltage protection, output short-circuit protection, overcurrent protection, and over-temperature protection. The device integrates a power tree generator, bandgap voltage reference, undervoltage lockout (UVLO), error amplifier, protection circuit, gate driver, current sensing module, and two power MOSFETs. SSP9301 is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- Wi-Fi and networking equipment
- Security surveillance systems
- Toys
Key features
- 2.7V to 5.5V input voltage range
- Input overvoltage protection @6V
- 40μA quiescent operating current
- Up to 1A output current
- Up to 95% efficiency
- Overcurrent, short-circuit, and over-temperature protection
- SOT23-5 package
