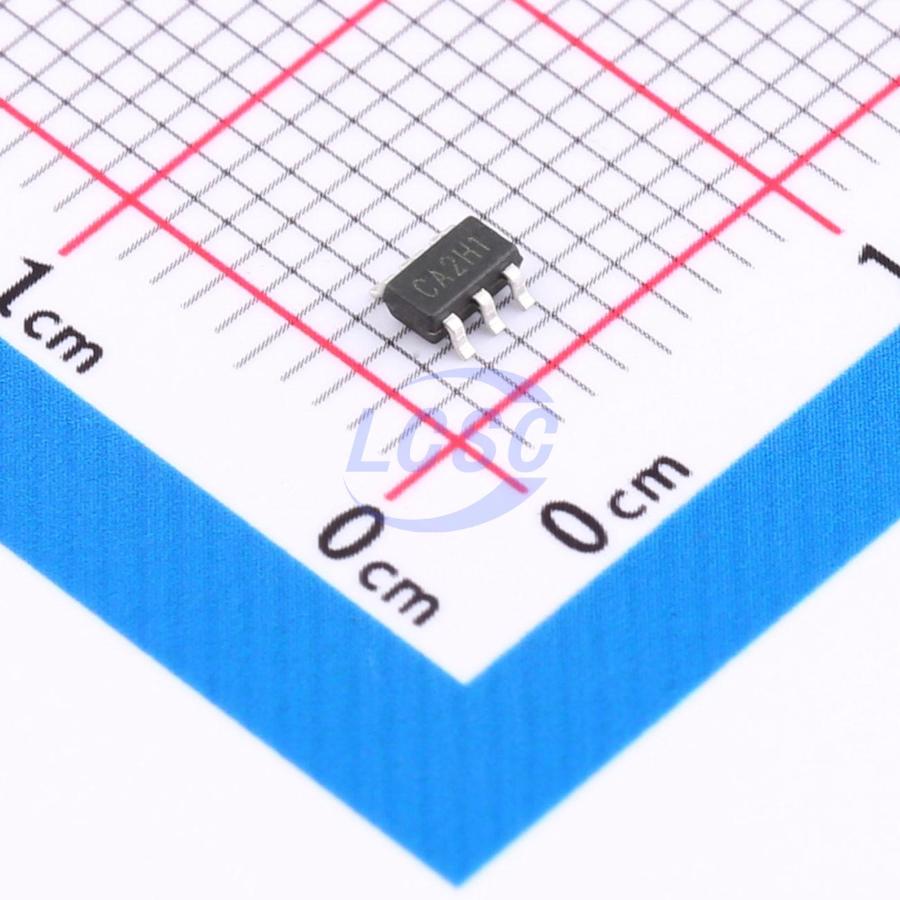

Siproin

SSP9322

Step-down type 500kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

Manufacturer: Siproin
Manufacturer part #: SSP9322
Store part #: C49331835
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,640 in stock

#C49331835

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
5+	₹20.35	₹101.75
50+	₹15.98	₹799.00
150+	₹14.10	₹2,115.00
500+	₹11.77	₹5,885.00
3,000+	₹10.73	₹32,190.00
6,000+	₹10.11	₹60,660.00

Quantity (min 5, multiples of 5)

5 × ₹20.35

₹101.75

excl. GST

₹120.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SSP9322

₹101.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 500kHz
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~28V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 300uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The SSP9322 is a high-frequency, synchronous rectified step-down switching power converter with integrated low on-resistance power MOSFETs, capable of delivering 2A continuous output current over a wide input voltage range with excellent load and line regulation. The COT PSM control operation provides fast transient response and simplified loop design while ensuring tight output voltage regulation. Only a few standard external components are required, housed in a space-saving SOT23-6 package.

Applications

Automotive systems
Network terminal equipment
Printer systems
Industrial power systems
Distributed power systems

Key features

Wide input voltage range: 4.5V to 28V
Continuous output current: 2A
COT PSM control mode for fast transient response
Switching frequency: 500kHz
Built-in OCP, OVP, OTP (thermal shutdown), and short-circuit protection (hiccup mode)
PFM mode for high efficiency at light load
Built-in soft-start circuit
Built-in low RDS(on) power MOSFETs: 100mΩ/50mΩ
FB voltage: 0.6V
Synchronous buck mode: no external Schottky diode required
Integrated internal compensation circuit
SOT23-6 package
Operating temperature range: -40°C to +85°C
