SiproinDatasheet (PDF)

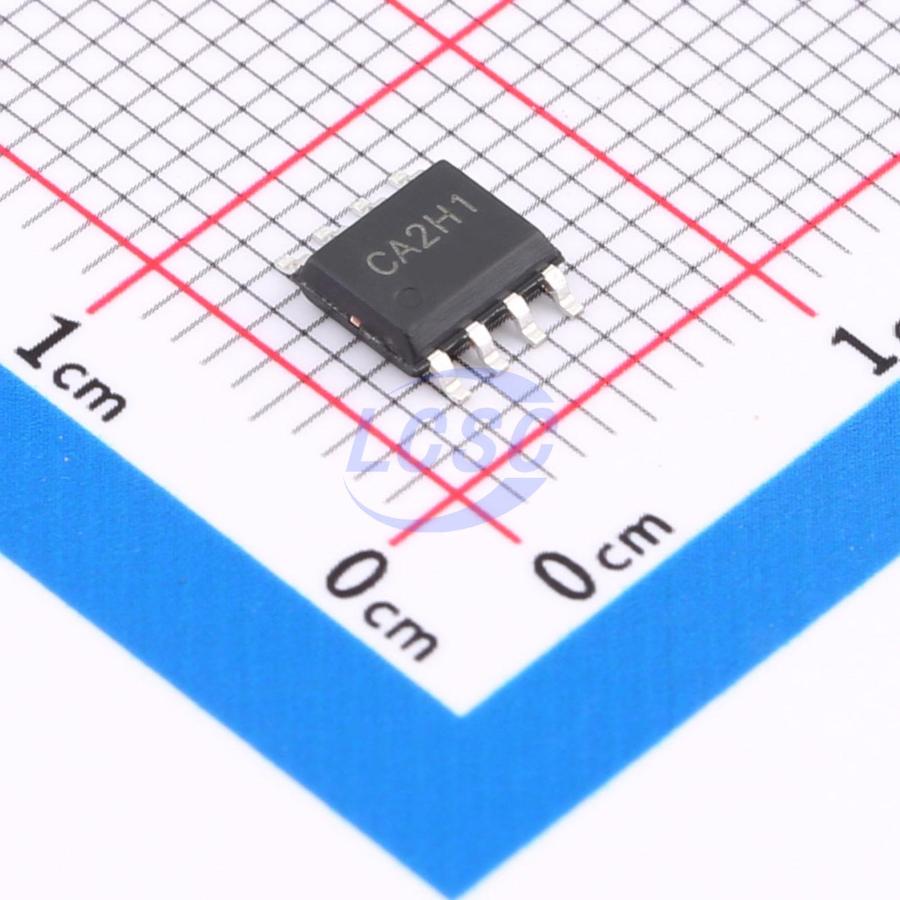

SSP9323
Step-down type 500kHz Adjustable 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
- Manufacturer
- Siproin
- Manufacturer part #
- SSP9323
- Store part #
- C49331836
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,105 in stock
#C49331836
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.49 | ₹122.45 |
| 50+ | ₹19.22 | ₹961.00 |
| 150+ | ₹16.97 | ₹2,545.50 |
| 500+ | ₹14.16 | ₹7,080.00 |
| 2,500+ | ₹12.91 | ₹32,275.00 |
| 4,000+ | ₹12.16 | ₹48,640.00 |
5 × ₹24.49
₹122.45
excl. GST
₹144.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP9323
₹122.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The SSP9323 is a high-frequency, synchronous rectification buck switching power converter with built-in low on-resistance power MOSFETs, capable of delivering 3A continuous output current over a wide input voltage range with excellent load and line regulation. COT PSM control operation provides fast transient response and simplified loop design while ensuring tight output voltage regulation. Only a few standard external components are required, packaged in a space-saving ESOP-8 package.
Applications
- Automotive systems
- Network terminal equipment
- Security surveillance cameras
- Printer systems
- Industrial power systems
Key features
- Wide input voltage range: 4.5V to 28V
- Continuous output current: 3A
- COTPSM control mode for fast transient response
- Switching frequency: 500KHz
- Built-in OCP, OVP, OTP (thermal shutdown), and SCP (hiccup mode)
- PFM mode for high efficiency at light load
- Built-in soft-start circuit
- Built-in low RDS(on) power MOSFETs: 100mΩ/50mΩ
- FB voltage: 0.6V
- Synchronous buck mode: no external Schottky diode required
- Integrated internal compensation circuit
- ESOP-8 package
- Operating temperature range: -40°C to +85°C
