SSP9451

The SSP9451 is a high frequency (1.8MHz) step-down switching regulator with integrated internal high-side high voltage power MOSFET. It provides single 0.6A(or less) highly efficient output with current mode control for fast loop response. The wide input range(4.2V to 40V) accommodates a variety of step-down applications under mobile environment input conditions. Low shutdown mode quiescent current of 1μA is suitable for battery-powered applications. High efficiency at light load condition is achieved by scaling down the switching frequency to reduce the switching and gate driving losses. The frequency folding technique helps prevent the inductance current from running out of control at startup. Hot shutdown provides reliable, fault tolerant operation. The SSP9451 is a 1.8MHz, non-synchronous, step-down switching regulator with integrated internal high side MOSFET. It provides internally compensated single 0.6A high efficient output. It features wide input voltage range, internal soft-start control, and precision current limit. Low operational quiescent current feature is suit for battery powered applications.

Applications

• High voltage power conversion
• Automotive systems
• Industrial power system
• Distributed power system
• Battery powered system

Key features

• Output 0.6A peak current
• 230μA operating quiescent current
• 4.2 V to 40 V operating input range
• 500 mΩ internal power MOSFET
• 1.8 MHz fixed switching frequency
• Internally compensated
• Stable with ceramic output capacitors
• Internal soft-start
• Precision current limit without current sensing resistor
• >90% efficiency
• Low shutdown mode current: <1μA

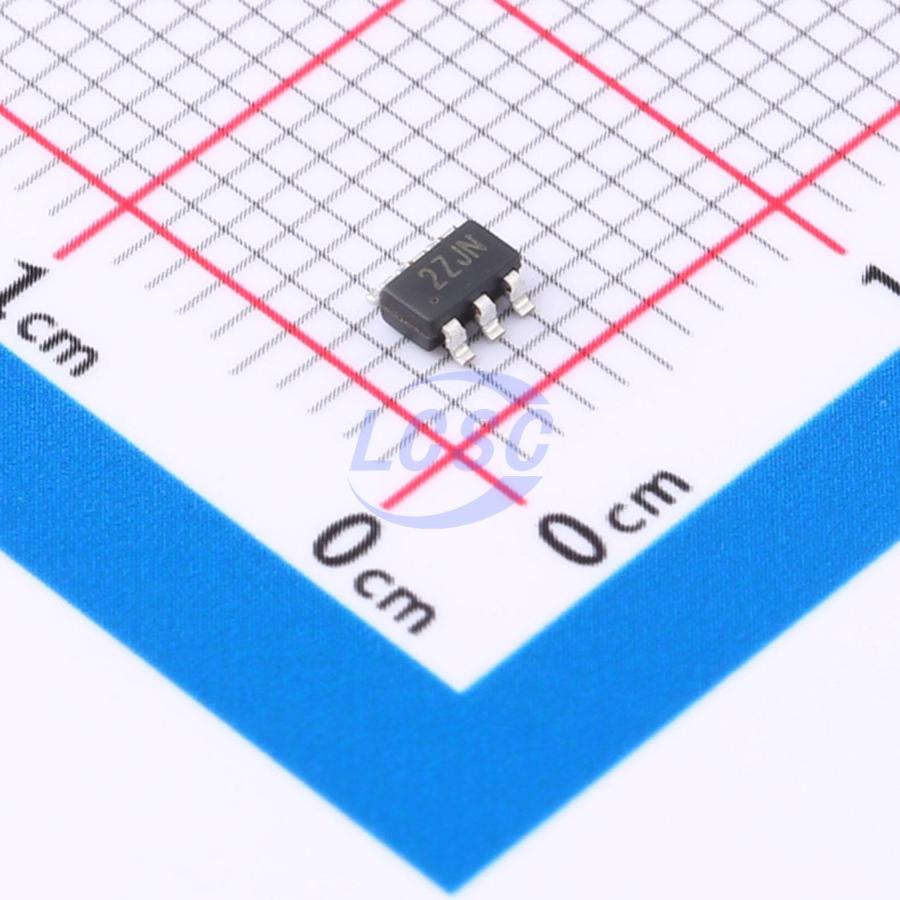

• SOT23-6 package
