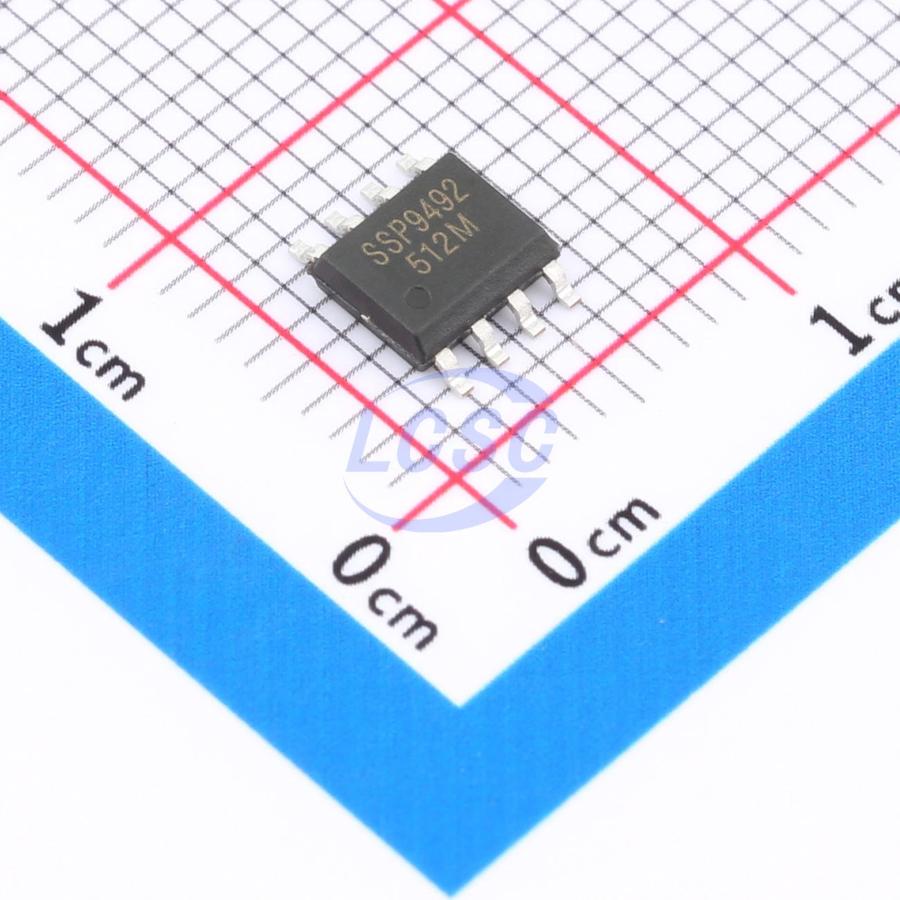

Siproin

SSP9492

Step-down type 125kHz Adjustable 3A 1.25V~50V ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

ESOP-8ROHS CompliantActive

Manufacturer: Siproin
Manufacturer part #: SSP9492
Store part #: C49331837
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,670 in stock

#C49331837

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹32.44	₹162.20
50+	₹28.25	₹1,412.50
150+	₹26.45	₹3,967.50
500+	₹24.20	₹12,100.00
2,500+	₹23.19	₹57,975.00
4,000+	₹22.60	₹90,400.00

Quantity (min 5, multiples of 5)

5 × ₹32.44

₹162.20

excl. GST

₹191.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SSP9492

₹162.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TJ)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 125kHz
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 9V~90V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 1.25V~50V
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

The SSP9492 is a monolithically integrated, programmable output current switching buck constant-voltage converter IC, operating over a wide input voltage range with excellent load regulation and line regulation. The device incorporates multiple protection features, including cycle-by-cycle peak current limiting, soft-start, overvoltage protection, over-temperature protection, and short-circuit protection, making it highly suitable for wide input voltage buck applications. Its proprietary soft-switching ZVS technology, combined with low switching loss super-junction medium-voltage MOSFETs, achieves conversion efficiency of up to 93%. The IC supports various typical circuit configurations, such as 48V input/12V output at 2.5A, 19V input/5V output at 4A, 85V input/12V output at 2A, and 12V input/5V output at 3A.
