VBsemi ElecDatasheet (PDF)

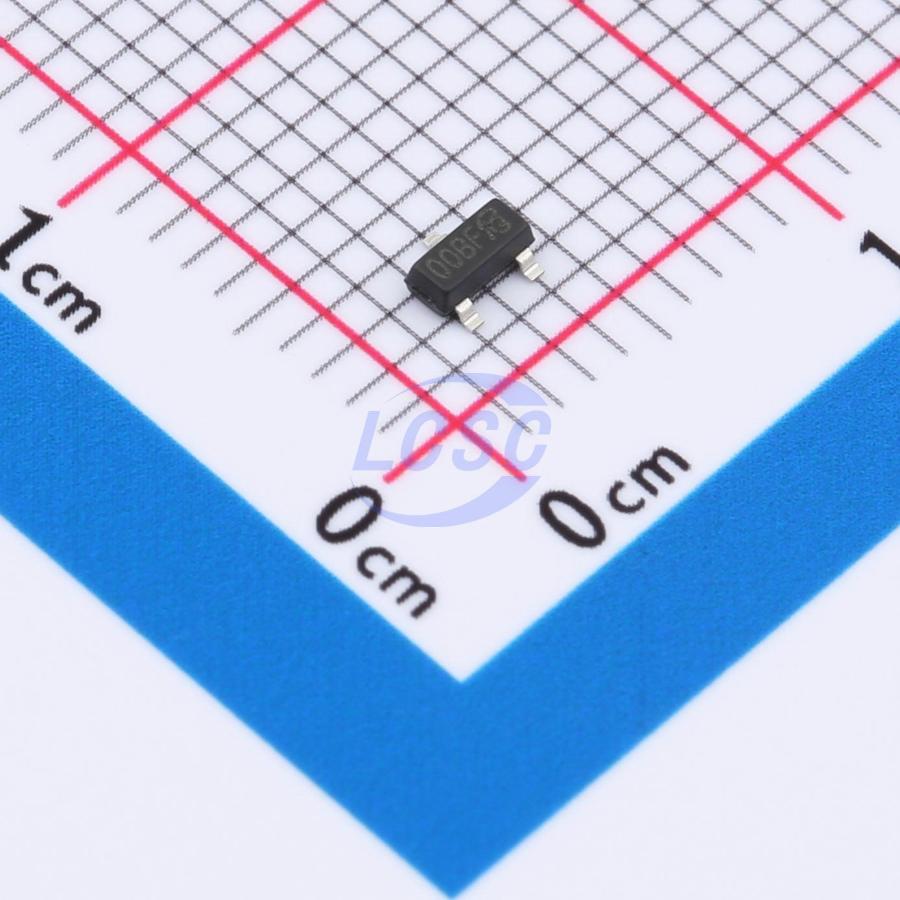

SSS2308-VB
N-Channel 20V 6A 2.1W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSS2308-VB
- Store part #
- C41370524
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41370524
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.02 | ₹90.20 |
| 100+ | ₹7.25 | ₹725.00 |
| 300+ | ₹6.35 | ₹1,905.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.63 | ₹27,780.00 |
| 9,000+ | ₹4.37 | ₹39,330.00 |
10 × ₹9.02
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSS2308-VB
₹90.20 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@4.5V;28mΩ@2.5V;39mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN2502LT1G-VB#C22389580VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹11.66 · 10 in stock | View |
 | XP151A13A0MRN-VB#C18212479VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹9.10 · 50 in stock | View |
 | DMN2005K-7-VB#C18212584VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹11.66 · 10 in stock | View |
 | MGSF1P02LT1G-VB#C19632139VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 90 | ₹9.00 · 90 in stock | View |
 | LN4501LT1G-VB#C20755195VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.00 · 30 in stock | View |
