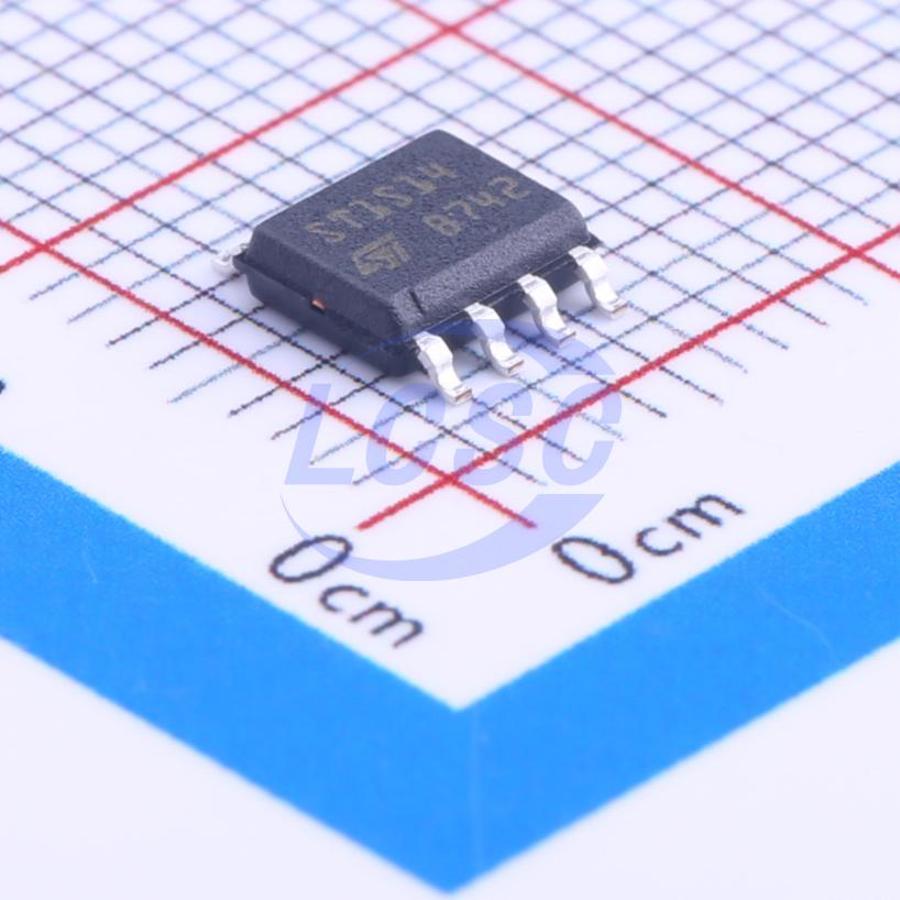

ST1S14PHR
850kHz Step-down type Adjustable 1.22V 3A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
3A Step-Down Switching Regulator
- Manufacturer
- ST
- Manufacturer part #
- ST1S14PHR
- Store part #
- C84130
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,183 in stock
#C84130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹300.94 | ₹300.94 |
| 10+ | ₹259.74 | ₹2,597.40 |
| 30+ | ₹233.95 | ₹7,018.50 |
| 100+ | ₹207.29 | ₹20,729.00 |
| 500+ | ₹172.16 | ₹86,080.00 |
| 1,000+ | ₹166.95 | ₹1,66,950.00 |
1 × ₹300.94
₹300.94
excl. GST
₹355.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST1S14PHR
₹300.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 850kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5.5V~48V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.22V
- Output Current
- 3A
- Quiescent Current
- 2.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
The ST1S14 is a step-down monolithic power switching regulator able to deliver up to 3 A DC current to the load depending on the application conditions. The high current is also thanks to a HS package with exposed frame that allows to reduce the Rth( JA) down to approximately 40 °C/W. The output voltage can be adjusted from 1.22 V. The device uses an internal N-channel DMOS transistor (with a typical RDS(on) 200 mΩ) as the switching element to minimize size of the external components. The internal oscillator fixes the switching frequency at 850 kHz. Power good open collector output validates the regulated output voltage as soon as it enters the regulation. Pulse-by-pulse current limit offers an effective constant current short-circuit protection.
Key features
- 5.5 V
- 48 V or 850 kHz output currents
- Operating input voltage range: 3 - 30 V
- Fixed switching frequency
- Soft start
- Power good output
- Internal compensation
- Continuous current operation
- Inhibit for zero current
- 250 mΩ maximum on-resistance
- Wide temperature range
