VBsemi ElecDatasheet (PDF)

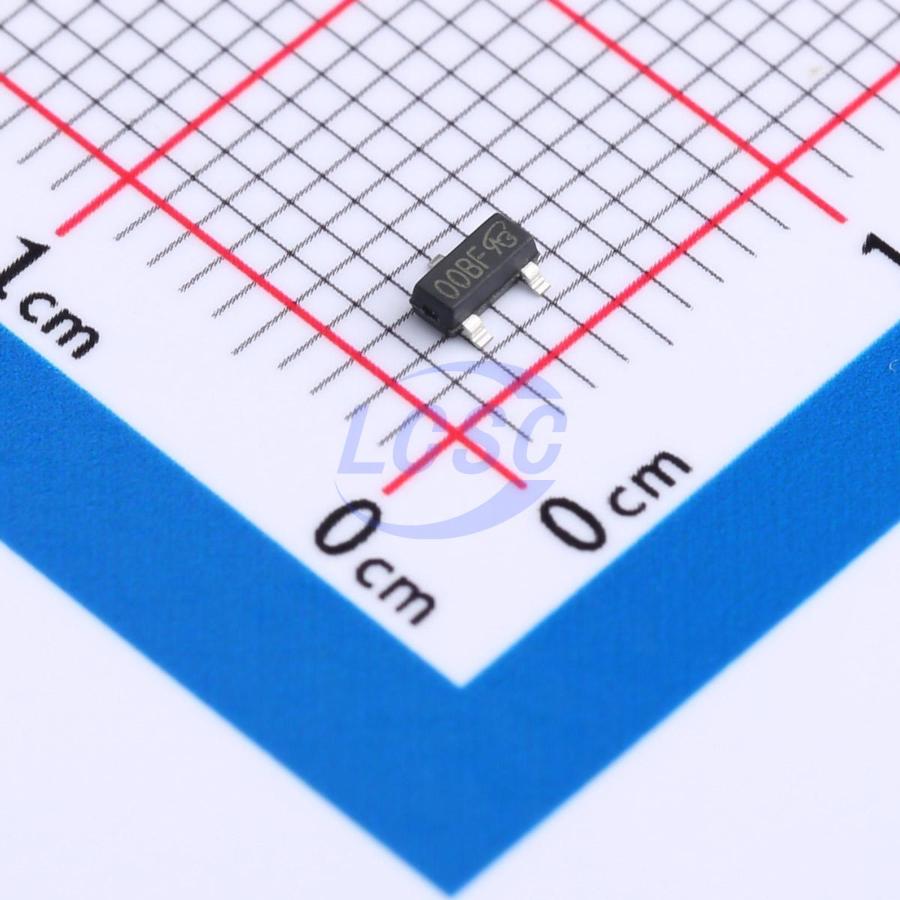

ST2302DSRG-VB
N-Channel 20V 6A 2.1W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ST2302DSRG-VB
- Store part #
- C5137392
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5137392
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.60 | ₹16,800.00 |
| 6,000+ | ₹5.05 | ₹30,300.00 |
| 9,000+ | ₹4.78 | ₹43,020.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST2302DSRG-VB
₹92.20 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.06 g
Overview
RC2310A is an N-channel logic-level enhancement-mode power MOSFET fabricated using high cell density DMOS trench technology. This high-density process is specifically designed to minimize on-resistance. These devices are particularly suited for low-voltage applications such as power management in mobile phones and laptops, as well as other battery-powered circuits requiring high-side switching and low inline power loss in ultra-compact SMT packages.
Applications
- DC-DC converter
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
