VBsemi ElecDatasheet (PDF)

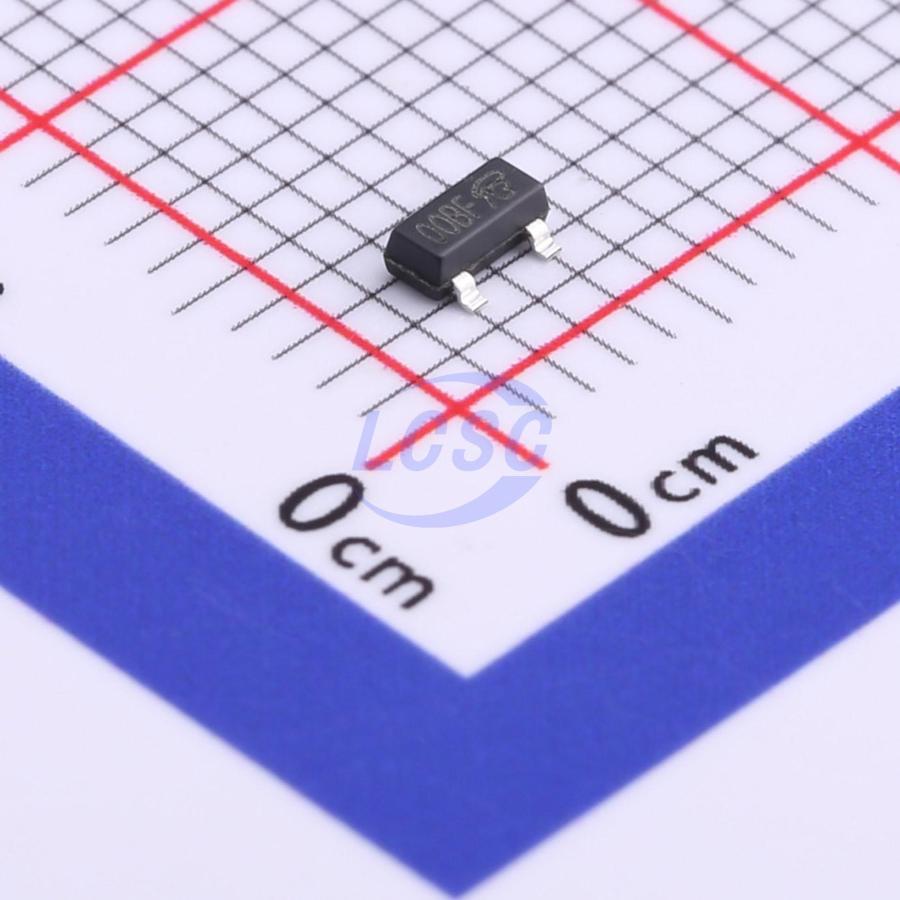

ST2302MSRG-VB
N-Channel 20V 6A 1.3W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ST2302MSRG-VB
- Store part #
- C725201
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C725201
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST2302MSRG-VB
₹89.70 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
Applications
- DC/DC converter
- Portable application load switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM2300AAC-TRL-VB#C5137370VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹9.22 · 10 in stock | View |
 | WFY6N02-VB#C5179564VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹10.17 · 50 in stock | View |
 | SI2312BDS-T1-GE3-VB#C5441239VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 500 | ₹8.98 · 500 in stock | View |
 | SI2302DS-T1-GE3-VB#C558245VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹10.65 · 20 in stock | View |
 | ST2300S23RG-VB#C558286VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.19 · 30 in stock | View |
