VBsemi ElecDatasheet (PDF)

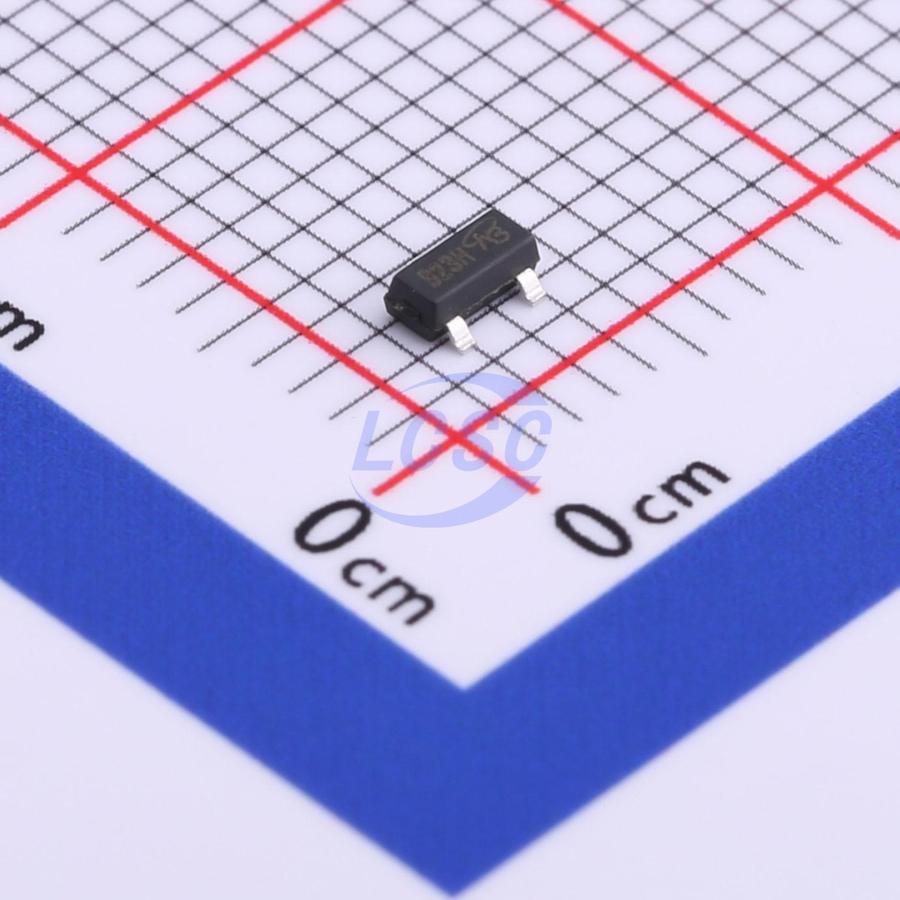

ST2315SRG-VB
P-Channel 30V 5.6A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 30V 5.6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ST2315SRG-VB
- Store part #
- C879063
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C879063
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.45 | ₹67.25 |
| 50+ | ₹10.64 | ₹532.00 |
| 150+ | ₹9.22 | ₹1,383.00 |
| 500+ | ₹8.16 | ₹4,080.00 |
| 3,000+ | ₹7.33 | ₹21,990.00 |
| 6,000+ | ₹6.91 | ₹41,460.00 |
5 × ₹13.45
₹67.25
excl. GST
₹79.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST2315SRG-VB
₹67.25 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 46mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V;11.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GT3401-VB#C7568799VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 350 | ₹13.24 · 350 in stock | View |
 | AP2309AGN-VB#C878855VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹13.64 · 20 in stock | View |
 | SM2323PSA-VB#C878887VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹13.79 · 70 in stock | View |
 | SI2307CDS-T1-E3-VB#C18212455VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 40 | ₹13.39 · 40 in stock | View |
 | AP2309GEN-HF-VB#C18212523VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹13.20 · 10 in stock | View |
