HXY MOSFETDatasheet (PDF)

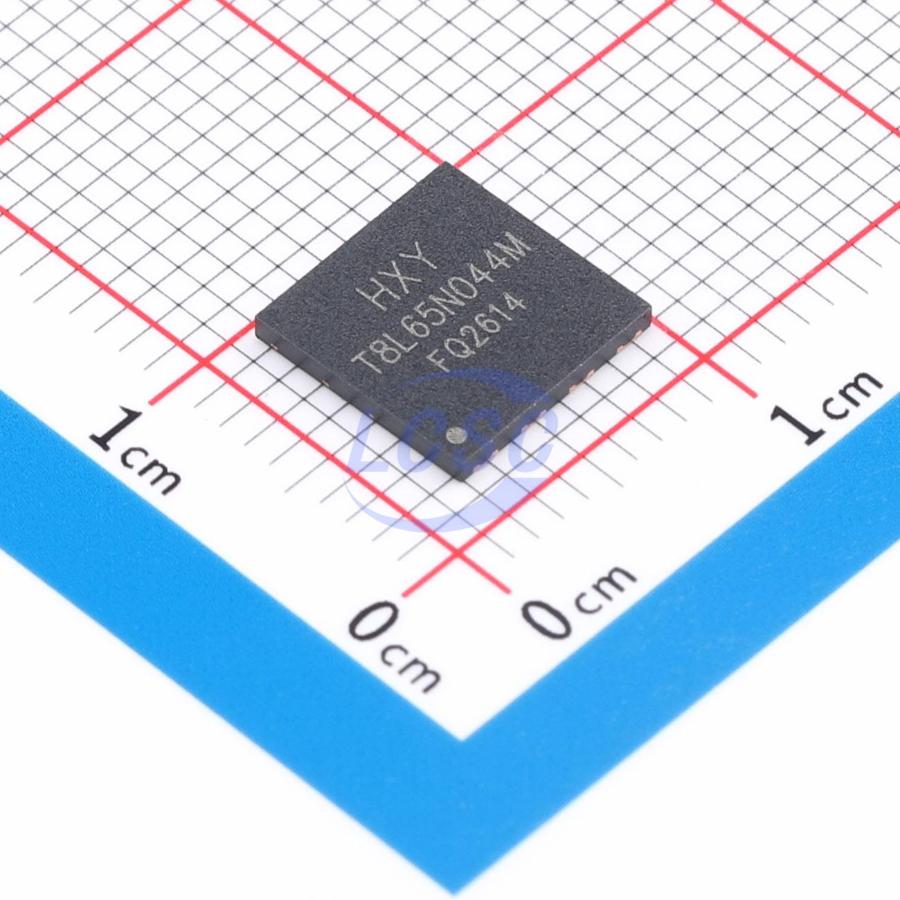

ST8L65N044M9-HXY
650V 70A 214W 36mΩ@18V 1 N-channel N-Channel DFN-5B(8x8) Single FETs, MOSFETs
DFN-5B(8x8)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ST8L65N044M9-HXY
- Store part #
- C53134121
- Package / case
- DFN-5B(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C53134121
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹535.97 | ₹535.97 |
| 10+ | ₹459.87 | ₹4,598.70 |
| 30+ | ₹414.55 | ₹12,436.50 |
| 100+ | ₹368.81 | ₹36,881.00 |
| 500+ | ₹347.78 | ₹1,73,890.00 |
| 1,000+ | ₹338.24 | ₹3,38,240.00 |
1 × ₹535.97
₹535.97
excl. GST
₹632.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST8L65N044M9-HXY
₹535.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 70A
- Output Capacitance(Coss)
- 115pF
- Ciss-Input Capacitance
- 1.525nF
- Pd - Power Dissipation
- 214W
- Reverse Transfer Capacitance (Crss)
- 3.3pF
- RDS(on)
- 36mΩ@18V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
Applications
- Switched-mode power supplies
- Renewable energy
- On-board chargers
- High-voltage DC/DC converters
Key features
- Wide bandgap SiC MOSFET technology
- Low on-resistance and high blocking voltage
- Low capacitance and high-speed switching
- Low reverse recovery charge
- Halogen-free, RoHS compliant
