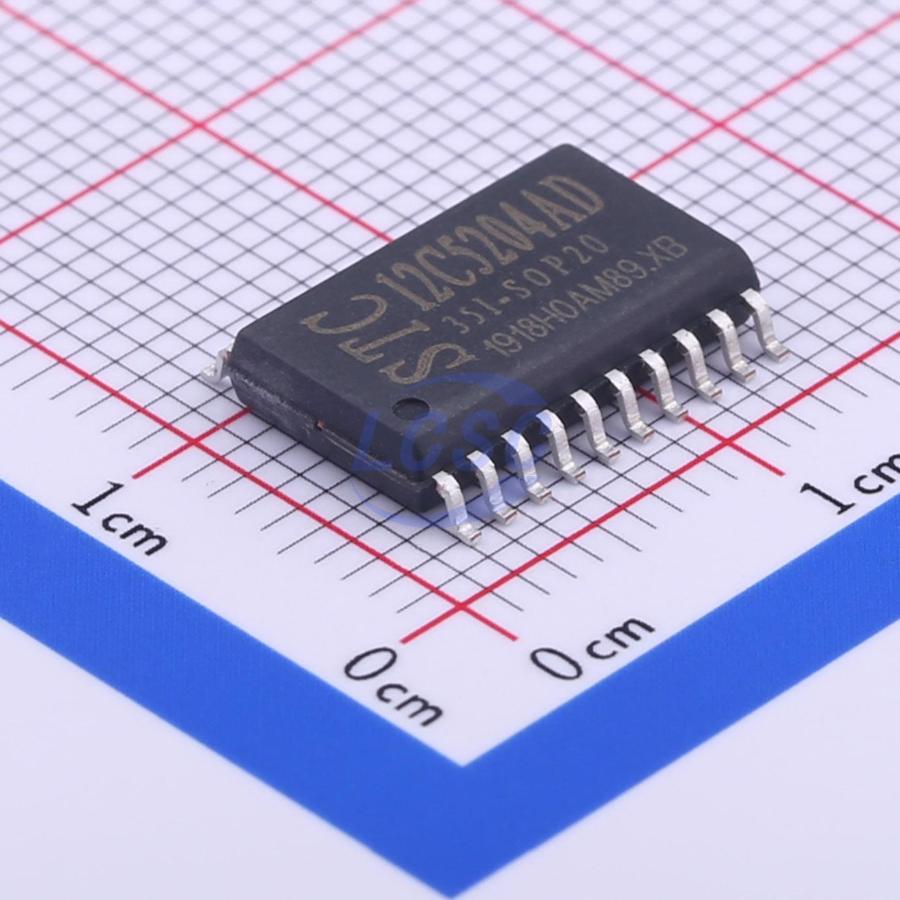

STC12C5204AD-35I-SOP20

The STC12C5201AD series MCU is a single-clock/machine-cycle (1T) microcontroller — a new generation of 8051 MCUs featuring high speed, low power consumption, and superior noise immunity. Fully instruction-compatible with legacy 8051, yet 8–12× faster. Integrates an internal MAX810 dedicated reset circuit, 2-channel PWM, and 8-channel high-speed 8-bit A/D conversion (300K/S), targeting motor control and high-interference environments.

Key features

• Enhanced 8051 CPU, 1T, single clock/machine cycle, fully instruction-code compatible with classic 8051
• Operating voltage: STC12C5201AD series 5.5V - 3.5V (5V MCU); STC12LE5201AD series 3.6V - 2.2V (3V MCU)
• Operating frequency range: 0~35MHz, equivalent to 0~420MHz of standard 8051
• User application program space: 1K / 2K / 4K / 5K / 6K bytes
• On-chip integrated 256-byte RAM
• General-purpose I/O ports (27 / 23 / 15 / 13 / 11), after reset: quasi-bidirectional/weak pull-up (classic 8051 standard I/O mode), configurable to four modes: quasi-bidirectional/weak pull-up, strong push-pull/strong pull-up, input-only/high-impedance, open-drain. Each I/O port drive capability up to 20mA, with a maximum of 55mA for the entire chip
• ISP (In-System Programming) / IAP (In-Application Programming), no dedicated programmer required; user program can be downloaded directly via serial port (P3.0/P3.1), completed in seconds
• EEPROM function
• Watchdog timer
• Integrated MAX810 dedicated reset circuit (when external crystal is below 20M, reset pin can connect directly to GND via 1K resistor)
• Built-in power-down detection circuit: low-voltage threshold comparator on P1.2 — 1.33V for 5V MCU with ±5% tolerance; 1.31V for 3.3V MCU with ±3% tolerance
• Clock source: external high-precision crystal/clock or internal R/C oscillator (temperature drift within ±5% to ±10%); selectable between internal R/C oscillator and external crystal/clock during program download. Internal R/C oscillator frequency at room temperature: 11MHz~17MHz for 5.0V MCU; 8MHz~12MHz for 3.3V MCU
• 4 × 16-bit timers total: two classic 8051-compatible timer/counters (16-bit Timer T0 and T1, no Timer 2), plus 2 PCA modules implementing 2 additional 16-bit timers
• 2 clock output ports: T0 overflow can output clock on P3.4/T0; T1 overflow can output clock on P3.5/T1
• 6 external interrupt I/O channels: classic falling-edge or low-level triggered interrupts, plus PCA module with added support for rising-edge interrupts
