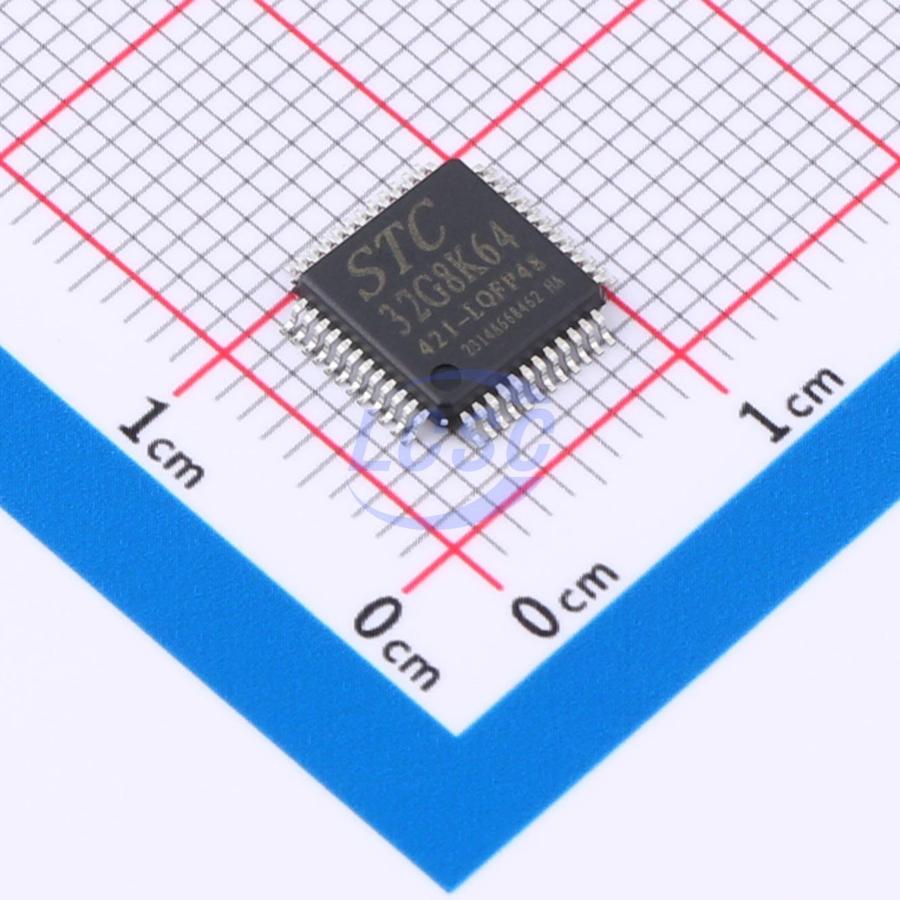

STC32G8K64-42I-LQFP48

51 Series 32 Bit LQFP-48(7x7) Microcontrollers RoHS

LQFP-48(7x7)ROHS CompliantActive

Automotive-grade 32-bit 8051 microcontroller

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,097 in stock

#C7419403

Stock & price checked 45 h ago

Quantity (min 1)

1 × ₹91.25

₹91.25

excl. GST

₹107.68 incl. 18% GST

STC32G8K64-42I-LQFP48

₹91.25 for 1 + GST

Specifications

Operating voltage: 2.0V ~ 5.5V
Operating frequency: 0 ~ 48MHz
Internal high-precision clock: ±1% temperature drift (-40℃ ~ +85℃), ±0.3% at room temperature
Internal 32KHz low-speed crystal oscillator
Large-capacity general-purpose RAM: 8K bytes
Large-capacity dedicated RAM: 4K bytes
Large-capacity DataFlash/EEPROM: 45K bytes
USB direct download and emulation support
USB-CDC serial communication support
Hardware USB support
USB-HID support
USB direct power supply support
Low-power mode support: idle mode and power-down mode
External interrupt support: all I/O pins, rising edge/falling edge/high level/low level trigger
Timer support: five 16-bit timers (T0/T1/T2/T3/T4), T0/T1/T2 support external counting
Programmable clock output support
Asynchronous serial port support: 4 full-duplex UART (UART1/2/3/4)
Synchronous serial port support: 2 SPI interfaces
I²C communication support
Comparator support: 2 channels
12-bit high-precision ADC, 15 channels, up to 800K SPS
Hardware true random number generator support
Hardware CRC32 checksum support
DMA support: peripheral-to-memory and memory-to-peripheral
4-channel advanced PWM timer support
4-channel capture/compare unit support
Dead-band control support
Brake function support
PWM external fault detection support
4-channel programmable counter array support
Internal 2.5V reference voltage source support
Low power consumption: typical <1.6mA @ 24MHz, power-down mode <0.4μA
Package: LQFP64/QFN64/LQFP48/QFN48/LQFP44/LQFP32/QFN32/PDIP40/TSSOP20
ESD: 8KV
