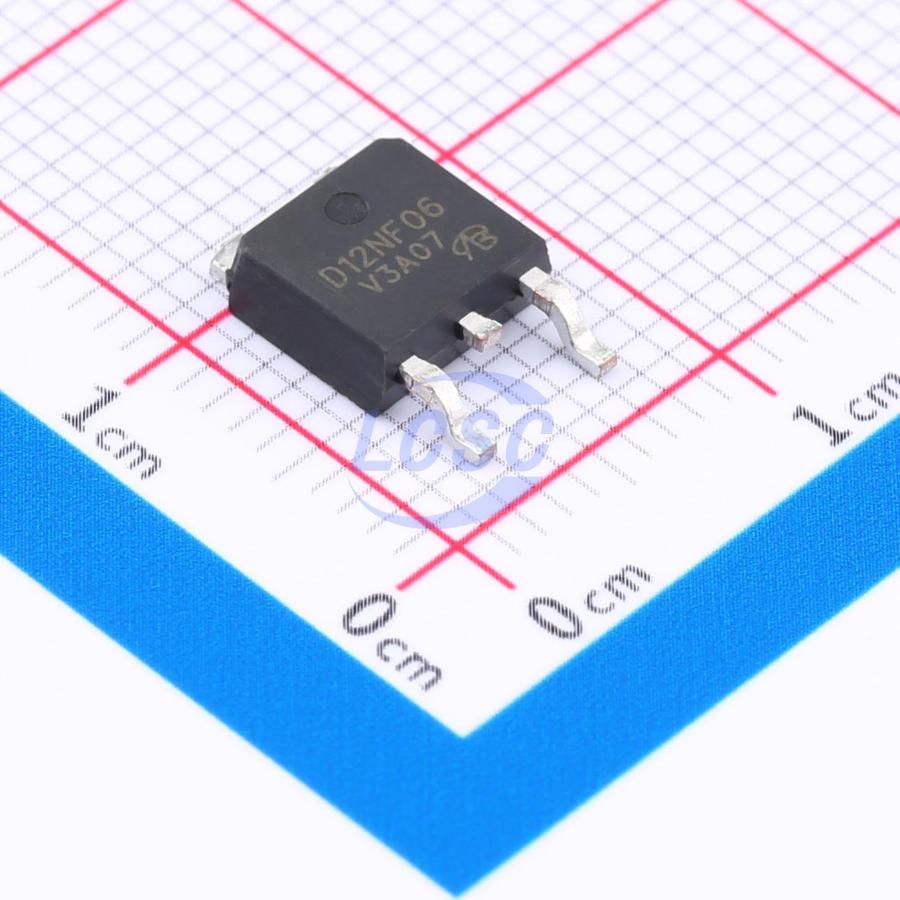

STD12NF06T4T4-VB
N-Channel 60V 18A 41.7W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 18A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD12NF06T4T4-VB
- Store part #
- C5355711
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5355711
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.06 | ₹57.06 |
| 10+ | ₹46.08 | ₹460.80 |
| 30+ | ₹41.12 | ₹1,233.60 |
| 100+ | ₹35.31 | ₹3,531.00 |
| 500+ | ₹32.52 | ₹16,260.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹57.06
₹57.06
excl. GST
₹67.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD12NF06T4T4-VB
₹57.06 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 85pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 73mΩ@10V;85mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- DC/DC converter
- DC/AC inverter
- Motor driver
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
