VBsemi ElecDatasheet (PDF)

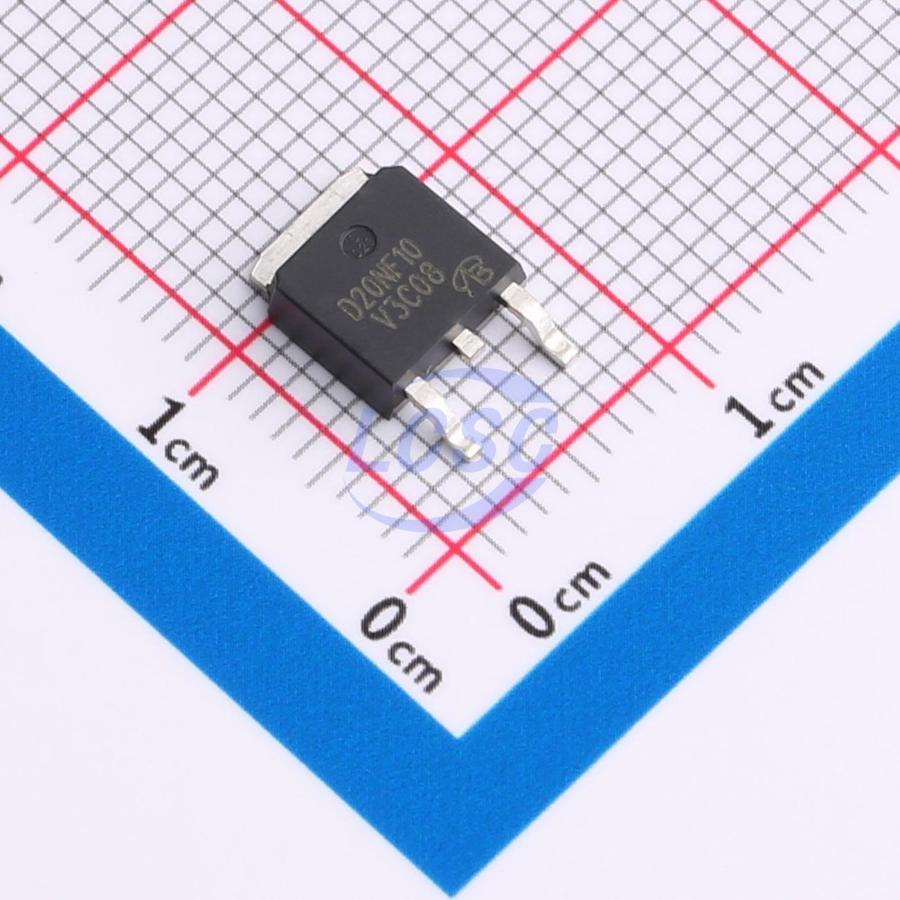

STD20NF10T4-VB
N-Channel 100V 40A 107W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 40A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD20NF10T4-VB
- Store part #
- C2680803
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2680803
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.87 | ₹105.87 |
| 10+ | ₹85.70 | ₹857.00 |
| 30+ | ₹75.62 | ₹2,268.60 |
| 100+ | ₹65.75 | ₹6,575.00 |
| 500+ | ₹59.87 | ₹29,935.00 |
| 1,000+ | ₹56.72 | ₹56,720.00 |
1 × ₹105.87
₹105.87
excl. GST
₹124.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD20NF10T4-VB
₹105.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.414 g
