VBsemi ElecDatasheet (PDF)

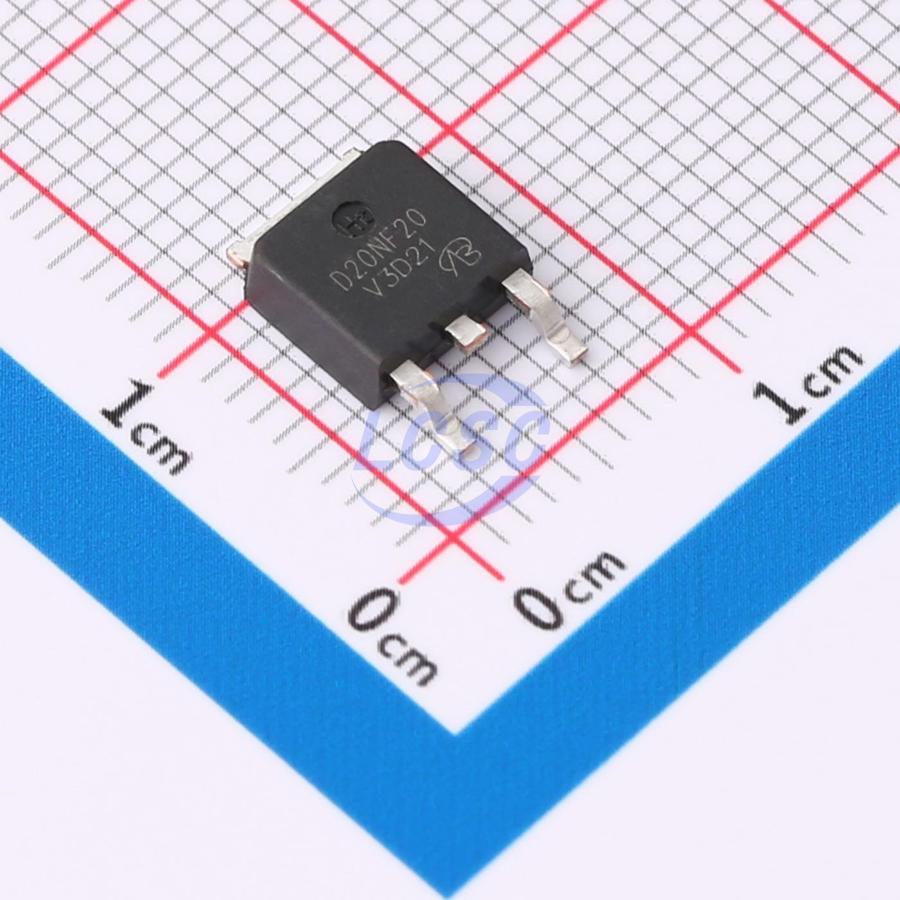

STD20NF20-VB
N-Channel 200V 30A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD20NF20-VB
- Store part #
- C7429113
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C7429113
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹299.12 | ₹299.12 |
| 10+ | ₹265.38 | ₹2,653.80 |
| 30+ | ₹244.25 | ₹7,327.50 |
| 100+ | ₹154.35 | ₹15,435.00 |
| 500+ | ₹144.55 | ₹72,275.00 |
| 1,000+ | ₹140.20 | ₹1,40,200.00 |
1 × ₹299.12
₹299.12
excl. GST
₹352.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD20NF20-VB
₹299.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.389 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant 2002/95/EC
