VBsemi ElecDatasheet (PDF)

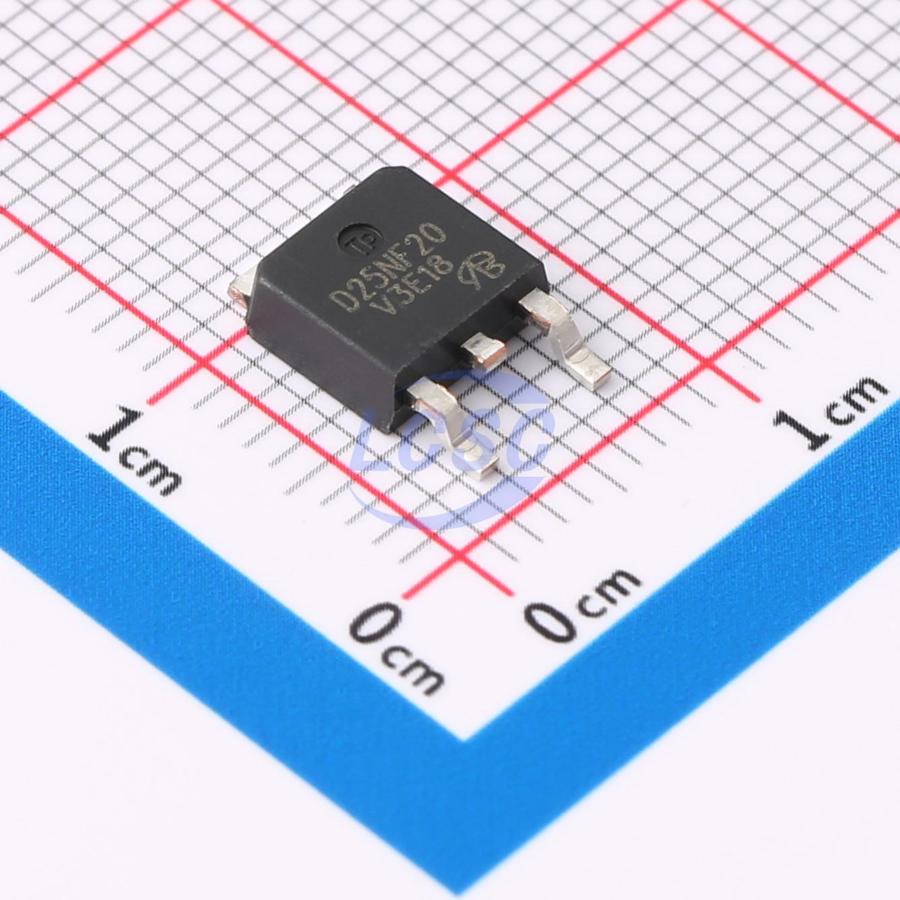

STD25NF20-VB
N-Channel 200V 30A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD25NF20-VB
- Store part #
- C7429116
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7429116
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.45 | ₹218.45 |
| 10+ | ₹185.91 | ₹1,859.10 |
| 30+ | ₹165.32 | ₹4,959.60 |
| 100+ | ₹144.52 | ₹14,452.00 |
| 500+ | ₹135.07 | ₹67,535.00 |
| 1,000+ | ₹131.08 | ₹1,31,080.00 |
1 × ₹218.45
₹218.45
excl. GST
₹257.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD25NF20-VB
₹218.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.389 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% Rg tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUD19N20-90-T4-E3-VB#C18795092VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 24 | ₹221.62 · 24 in stock | View |
 | STD20NF20T4-VB#C20755397VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 47 | ₹221.62 · 47 in stock | View |
 | AM20N20-125D-VB#C29778794VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹211.94 · 10 in stock | View |
 | 2N120-VB#C29779141VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹211.94 · 10 in stock | View |
 | IRFR13N20DTRPBF-VB#C5438943VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹230.76 · 50 in stock | View |
