VBsemi ElecDatasheet (PDF)

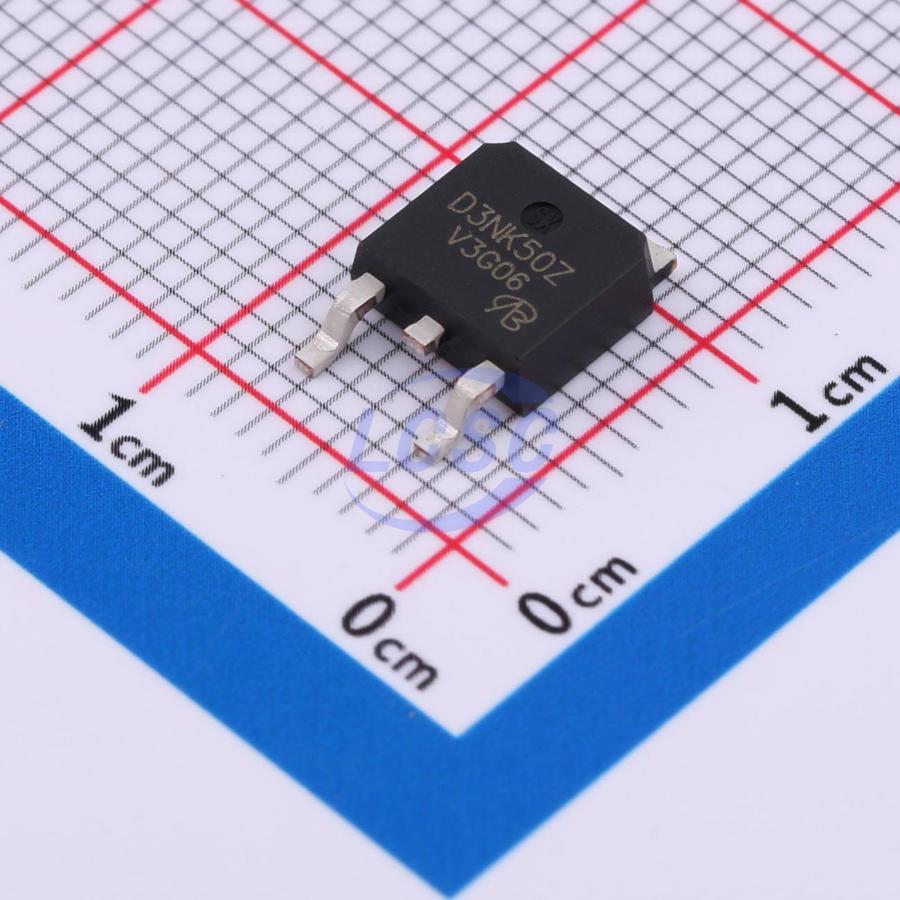

STD3NK50ZT4-VB
N-Channel 650V 4.5A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 650V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD3NK50ZT4-VB
- Store part #
- C7494540
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C7494540
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.41 | ₹75.41 |
| 10+ | ₹60.29 | ₹602.90 |
| 30+ | ₹53.78 | ₹1,613.40 |
| 100+ | ₹45.80 | ₹4,580.00 |
| 500+ | ₹38.87 | ₹19,435.00 |
| 1,000+ | ₹36.55 | ₹36,550.00 |
1 × ₹75.41
₹75.41
excl. GST
₹88.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD3NK50ZT4-VB
₹75.41 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.376 g
Overview
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement Available
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
