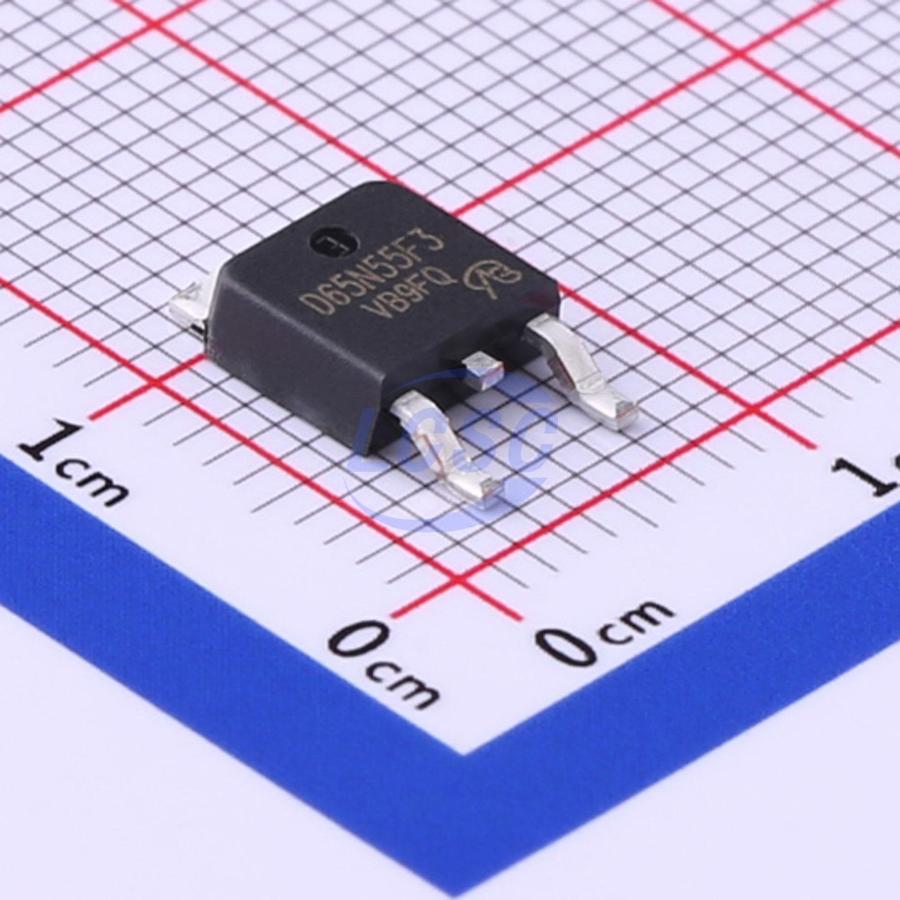

STD65N55F3-VB
N-Channel 60V 97A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 97A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD65N55F3-VB
- Store part #
- C693300
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C693300
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.97 | ₹132.97 |
| 10+ | ₹108.82 | ₹1,088.20 |
| 30+ | ₹96.84 | ₹2,905.20 |
| 100+ | ₹84.87 | ₹8,487.00 |
| 500+ | ₹73.73 | ₹36,865.00 |
| 1,000+ | ₹69.96 | ₹69,960.00 |
1 × ₹132.97
₹132.97
excl. GST
₹156.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD65N55F3-VB
₹132.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 441pF
- Current - Continuous Drain(Id)
- 97A
- Ciss-Input Capacitance
- 4.844nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.453 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
