VBsemi ElecDatasheet (PDF)

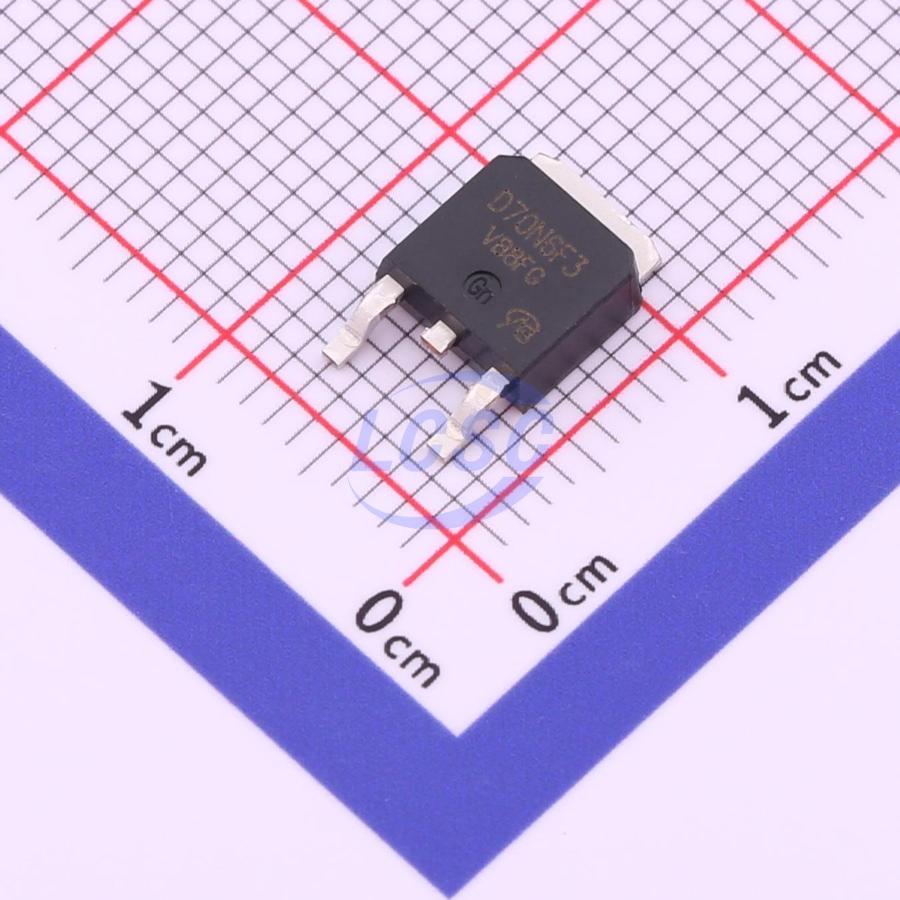

STD70N6F3-VB
N-Channel 60V 58A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STD70N6F3-VB
- Store part #
- C725207
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C725207
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.11 | ₹107.11 |
| 10+ | ₹90.57 | ₹905.70 |
| 30+ | ₹82.29 | ₹2,468.70 |
| 100+ | ₹74.02 | ₹7,402.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹107.11
₹107.11
excl. GST
₹126.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD70N6F3-VB
₹107.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
Key features
- 175°C junction temperature
- Trench power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD5353-VB#C18212542VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹86.92 · 30 in stock | View |
 | IRFR2905ZTRPBF-VB#C18212554VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹106.49 · 12 in stock | View |
 | SSF6014D-VB#C18212606VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹105.83 · 35 in stock | View |
 | 4N0609 TO252-VB#C19188174VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 16 | ₹72.61 · 16 in stock | View |
 | AUIRFR48ZTR-VB#C19188240VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 60 | ₹86.92 · 60 in stock | View |
