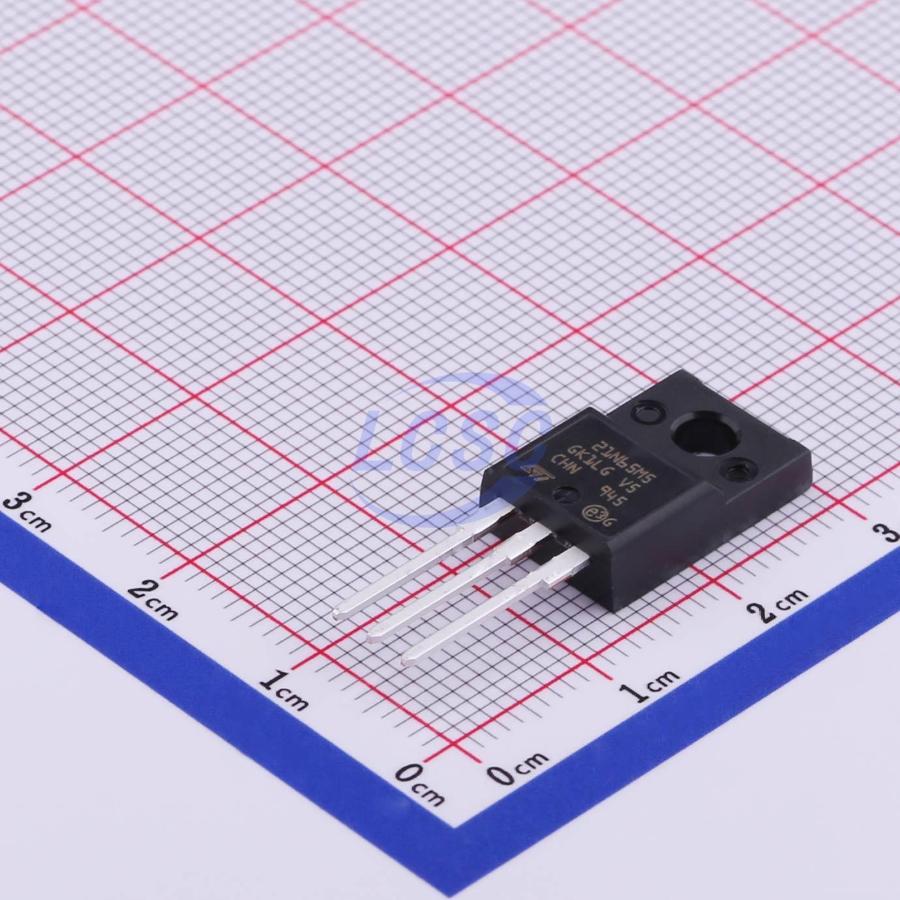

STF21N65M5
N-Channel 650V 17A 30W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 650V 17A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF21N65M5
- Store part #
- C500978
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C500978
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹431.88 | ₹431.88 |
| 10+ | ₹369.26 | ₹3,692.60 |
| 30+ | ₹329.88 | ₹9,896.40 |
| 100+ | ₹289.67 | ₹28,967.00 |
| 500+ | ₹271.44 | ₹1,35,720.00 |
| 1,000+ | ₹263.49 | ₹2,63,490.00 |
1 × ₹431.88
₹431.88
excl. GST
₹509.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF21N65M5
₹431.88 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 46pF
- Ciss-Input Capacitance
- 1.95nF
- Pd - Power Dissipation
- 30W
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among silicon-based Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiency.
Applications
- Switching applications
Key features
- Higher RDS(on) area
- Higher VDSS rating
- High dv/dt capability
- Excellent switching performance
- 100% avalanche tested
