STDatasheet (PDF)

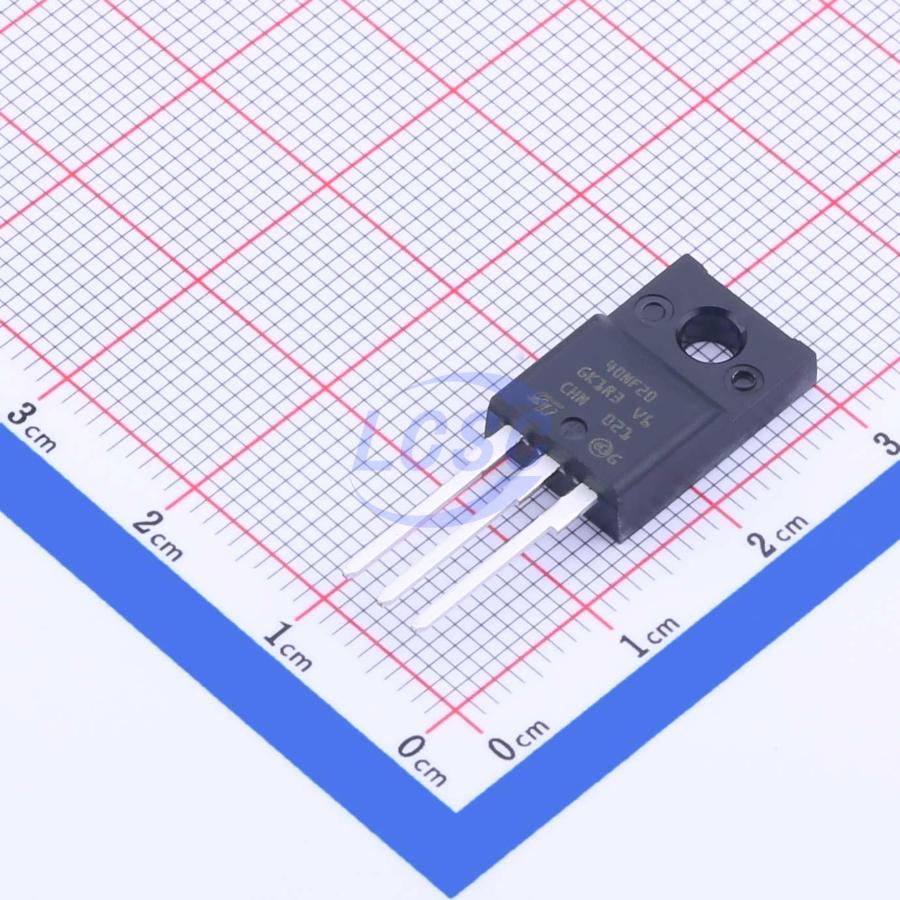

STF40NF20
N-Channel 200V 40A 40W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 200V 40A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF40NF20
- Store part #
- C2688607
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C2688607
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹292.26 | ₹292.26 |
| 10+ | ₹285.32 | ₹2,853.20 |
| 30+ | ₹280.75 | ₹8,422.50 |
| 100+ | ₹276.19 | ₹27,619.00 |
1 × ₹292.26
₹292.26
excl. GST
₹344.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF40NF20
₹292.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 510pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 40W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 78pF
- RDS(on)
- 45mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.14 g
Overview
This Power MOSFET series realized with unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high - efficiency isolated DC - DC converters.
Applications
- Switching application
Key features
- Gate charge minimized
- Very low intrinsic capacitances
- Very good manufacturing repeatability
- Excellent figure of merit (RDS*Qg)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDPF390N15A-VB#C18795069VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 27 | ₹294.42 · 27 in stock | View |
 | RJK2017DPP-M0-VB#C20417620VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹302.48 · 10 in stock | View |
 | 2SK3209-VB#C20417716VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹316.13 · 10 in stock | View |
 | IRFI4227PBF-VB#C20626287VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹415.70 · 6 in stock | View |
 | K3209-VB#C20755533VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹302.48 · 10 in stock | View |
