STDatasheet (PDF)

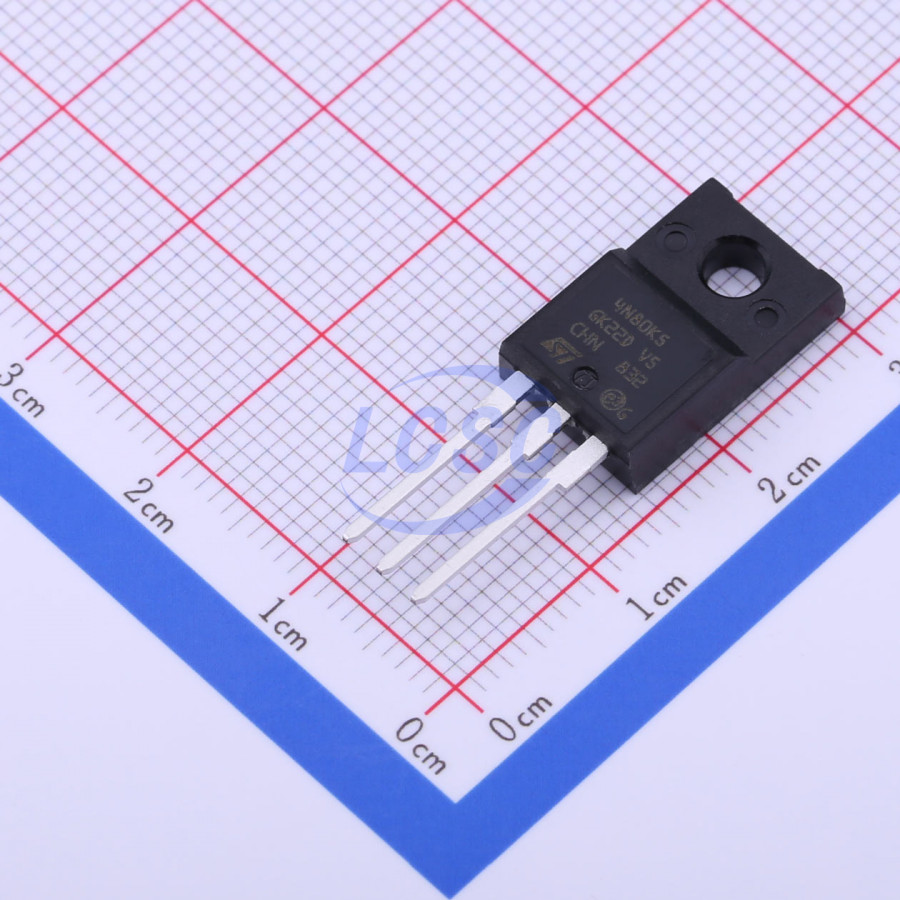

STF4N80K5
N-Channel 800V 3A 20W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 800V 3A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF4N80K5
- Store part #
- C377959
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C377959
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹379.77 | ₹379.77 |
| 10+ | ₹318.58 | ₹3,185.80 |
| 30+ | ₹280.16 | ₹8,404.80 |
| 100+ | ₹241.09 | ₹24,109.00 |
| 500+ | ₹223.27 | ₹1,11,635.00 |
| 1,000+ | ₹215.54 | ₹2,15,540.00 |
1 × ₹379.77
₹379.77
excl. GST
₹448.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF4N80K5
₹379.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 175pF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 0.5pF
- RDS(on)
- 2.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.61 g
Overview
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
Applications
- Switching applications
Key features
- Industry’s lowest RDS(on) x area Industry’s best figure of merit (FoM)
- Ultra low gate charge
- 100% avalanche tested Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STF4LN80K5#C2970936ST · TO-220FP | ST | TO-220FP | 100 | ₹331.01 · 100 in stock | View | |
 | STF7N105K5#C183259ST · TO-220FP | ST | TO-220FP | 7 | ₹275.33 · 7 in stock | View |
 | FQPF6N80C#C11760onsemi · TO-220F-3 | onsemi | TO-220F-3 | 99 | ₹218.56 · 99 in stock | View |
 | CMF6N120#C45385091Cmos · TO-220F | Cmos | TO-220F | 24 | ₹222.70 · 24 in stock | View |
| STF6N90K5#C2965319ST · TO-220FP | ST | TO-220FP | 11 | ₹344.84 · 11 in stock | View | |
