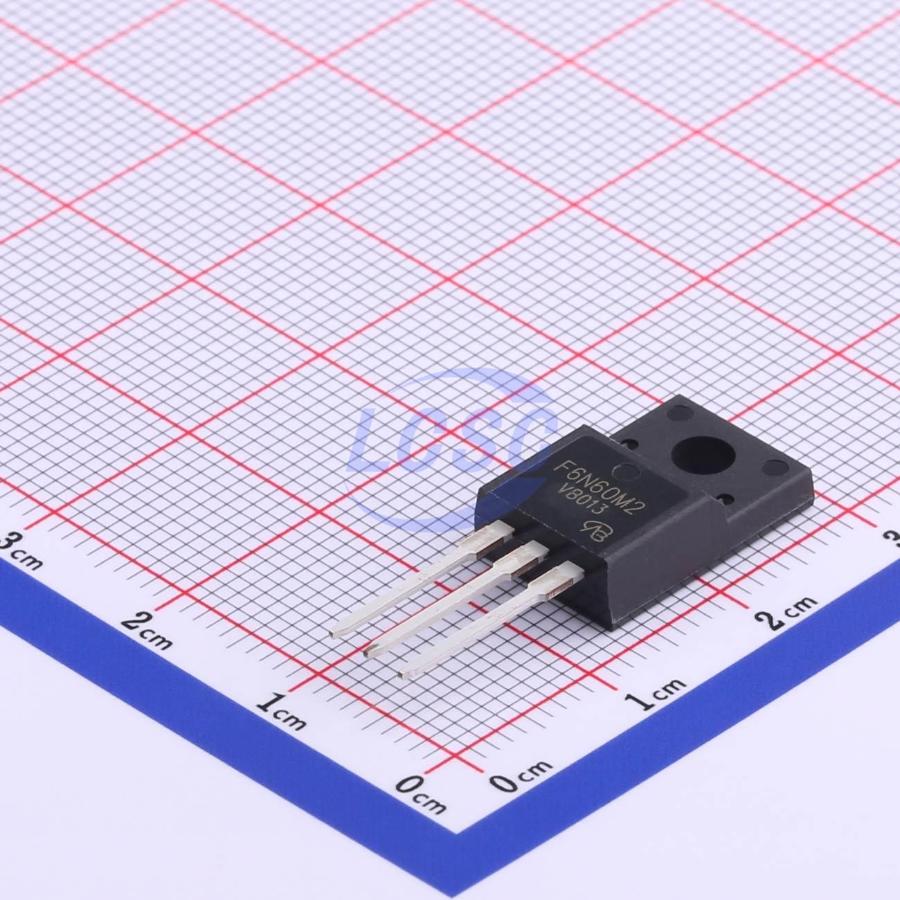

STF6N60M2-VB
N-Channel 650V 7A Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 7A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STF6N60M2-VB
- Store part #
- C878791
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C878791
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.19 | ₹109.19 |
| 10+ | ₹87.23 | ₹872.30 |
| 50+ | ₹76.06 | ₹3,803.00 |
| 100+ | ₹65.28 | ₹6,528.00 |
| 500+ | ₹58.69 | ₹29,345.00 |
| 1,000+ | ₹55.30 | ₹55,300.00 |
1 × ₹109.19
₹109.19
excl. GST
₹128.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF6N60M2-VB
₹109.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 860pF
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF5NK52ZD-VB#C18795009VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹123.73 · 20 in stock | View |
 | KF5N53FS-VB#C19190158VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹123.73 · 20 in stock | View |
 | STP7NA60FI-VB#C19190175VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 14 | ₹125.17 · 14 in stock | View |
 | STF6N62K3-VB#C19626692VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 46 | ₹118.90 · 46 in stock | View |
 | STP6N60FI-VB#C19626746VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 21 | ₹125.17 · 21 in stock | View |
