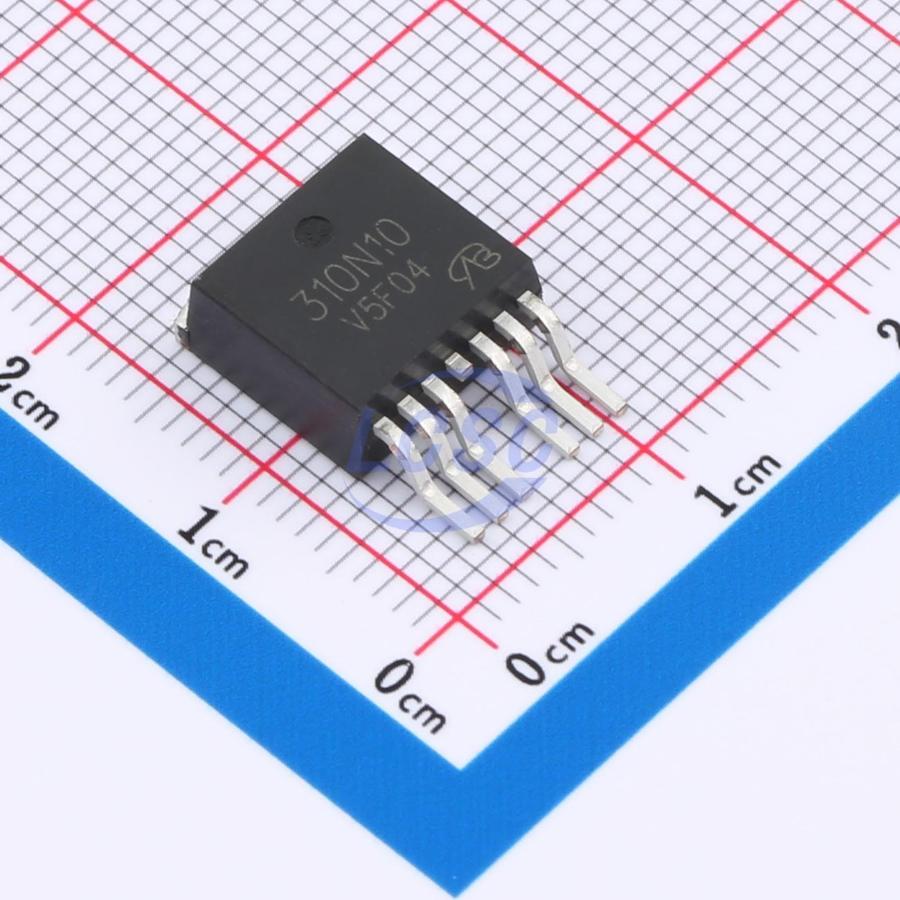

STH310N10F7-6-VB
N-Channel 100V 250A 300W Surface Mount TO-263-7
TO-263-7RoHSActive
MOSFET N-CH 100V 250A TO-263-7
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STH310N10F7-6-VB
- Store part #
- C47993734
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993734
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹510.28 | ₹510.28 |
| 10+ | ₹452.59 | ₹4,525.90 |
| 50+ | ₹301.30 | ₹15,065.00 |
| 100+ | ₹264.07 | ₹26,407.00 |
| 500+ | ₹247.31 | ₹1,23,655.00 |
| 1,000+ | ₹240.12 | ₹2,40,120.00 |
1 × ₹510.28
₹510.28
excl. GST
₹602.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STH310N10F7-6-VB
₹510.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 246pF
- Current - Continuous Drain(Id)
- 250A
- Ciss-Input Capacitance
- 8.2nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 1.2mΩ@10V;2mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.65 g
Overview
Applications
- Power Supplies
- UPS
- AC/DC Switching Power Supplies
- Lighting
- Synchronous Rectification
- DC/DC Converters
- Motor Drive Switches
- DC/AC Inverters
- Solar Micro-Inverters
- Class D Audio Amplifiers
Key features
- SGT power MOSFET
- Maximum junction temperature 150°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPF015N10N5ATMA1-VB#C47993813VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹468.92 · 5 in stock | View |
 | IPF015N10N5-VB#C47993814VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹510.28 · 5 in stock | View |
 | IPB180N10S402ATMA1-VB#C47993819VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹468.92 · 5 in stock | View |
 | IPB017N10N5ATMA1-VB#C47993830VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 48 | ₹432.86 · 48 in stock | View |
 | IPB017N10N5-VB#C47993831VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 4 | ₹452.81 · 4 in stock | View |
