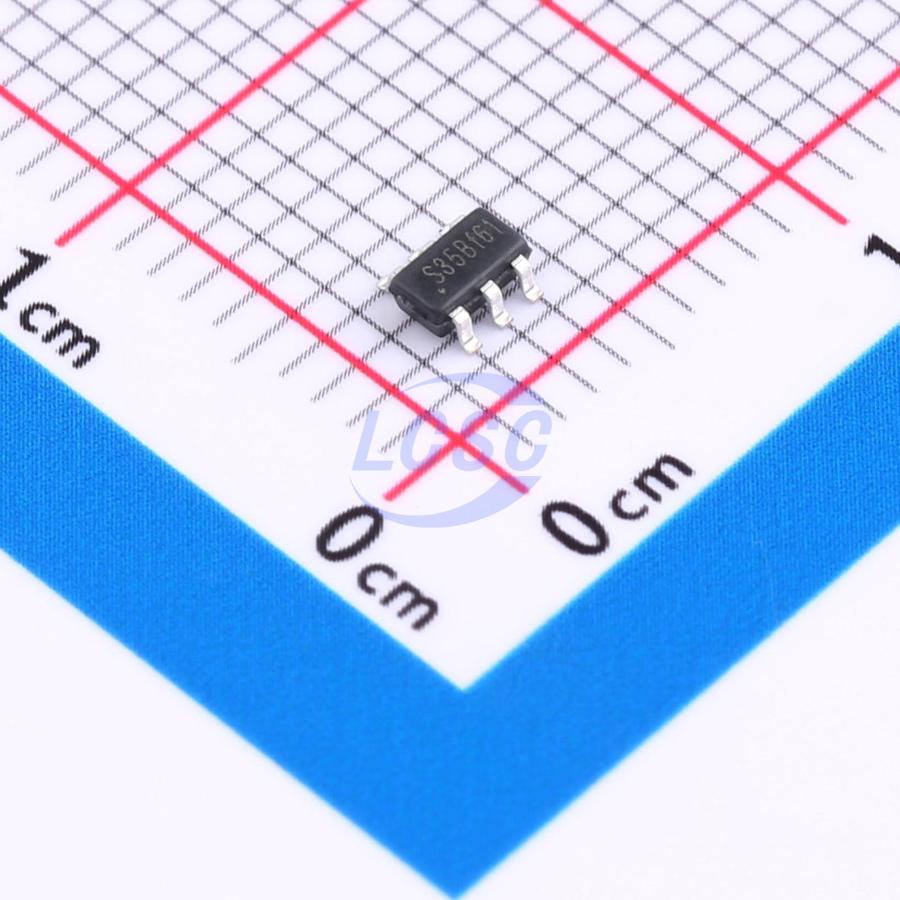

STI3508
Boost 1MHz Adjustable 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
28V Output High Efficiency 1MHz Step Up Regulator
- Manufacturer
- TMI
- Manufacturer part #
- STI3508
- Store part #
- C708881
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,262 in stock
#C708881
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹18.24 | ₹54.72 |
| 30+ | ₹14.86 | ₹445.80 |
| 90+ | ₹13.16 | ₹1,184.40 |
| 300+ | ₹11.89 | ₹3,567.00 |
| 1,500+ | ₹10.88 | ₹16,320.00 |
| 3,000+ | ₹10.37 | ₹31,110.00 |
3 × ₹18.24
₹54.72
excl. GST
₹64.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STI3508
₹54.72 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Boost
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~7V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.049 g
Overview
The STI3508 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The STI3508 switches at 1MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal softstart results in small inrush current and extends battery life. The STI3508 features automatic shifting to pulse frequency modulation mode at light loads. The STI3508 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The STI3508 is available in a small SOT23-6 package.
Applications
- Battery-Powered Equipment
- Set-Top Boxed
- White LED Driver
- Power Bank
- DSL and Cable Modems and Routers
Key features
- Integrated 80mΩ Power MOSFET
- 2.5V to 7V Input Voltage
- 1MHz Fixed Switching Frequency
- Internal 3A Switch Current Limit
- Adjustable Output Voltage
- Internal Compensation
- Up to 28V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Available in a 6-Pin SOT23-6 Package
