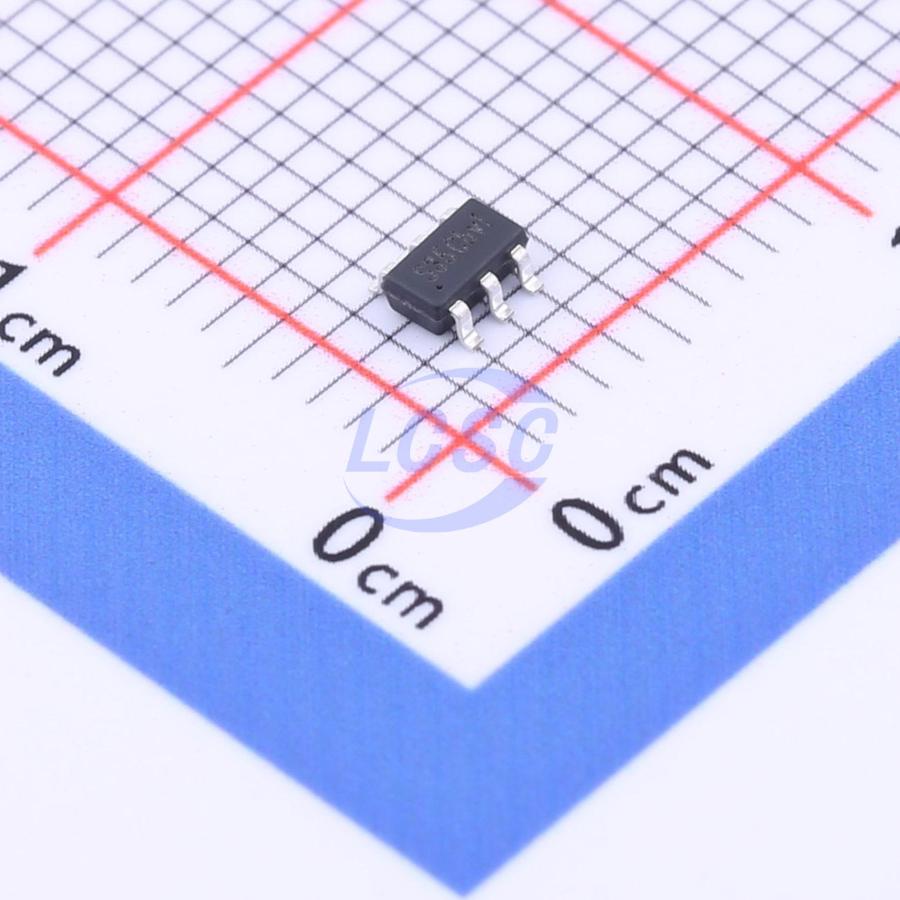

STI3508C
1.2MHz Boost Adjustable 2.5V~30V 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
30V Output, 2.5A Current Limit, 1.2MHz High Efficiency Asynchronous Boost Regulator
- Manufacturer
- TMI
- Manufacturer part #
- STI3508C
- Store part #
- C2890460
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,254 in stock
#C2890460
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹12.41 | ₹37.23 |
| 30+ | ₹9.91 | ₹297.30 |
| 90+ | ₹8.65 | ₹778.50 |
| 300+ | ₹7.71 | ₹2,313.00 |
| 1,500+ | ₹6.96 | ₹10,440.00 |
| 3,000+ | ₹6.59 | ₹19,770.00 |
3 × ₹12.41
₹37.23
excl. GST
₹43.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STI3508C
₹37.23 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~30V
- Output Current
- 2.5A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.027 g
Overview
The STI3508C and STI3508CA are constant frequency, peak current mode step-up converter with SOT23-6 package intended for small, low power applications. The STI3508C and STI3508CA switch at 1.2MHz and allow the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The STI3508C and STI3508CA devices feature automatic shifting to pulse frequency modulation mode at light loads. The STI3508C and STI3508CA include under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The STI3508C and STI3508CA are available in a small SOT23-6 package.
Applications
- Portable Equipment Applications
- LED Application
- Digital Still and Video Cameras
Key features
- 2.5V to 5.5V Input Voltage Range
- Integrated 100mΩ Power MOSFET
- 1.2MHz Fixed Switching Frequency
- Internal 2.5A Switch Current Limit Typically
- Adjustable Output Voltage with 0.6V VFB for STI3508C 1.2V VFB for STI3508CA
- Internal Compensation
- Up to 30V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads Available in a 6-Pin SOT23-6 Package
