VBsemi ElecDatasheet (PDF)

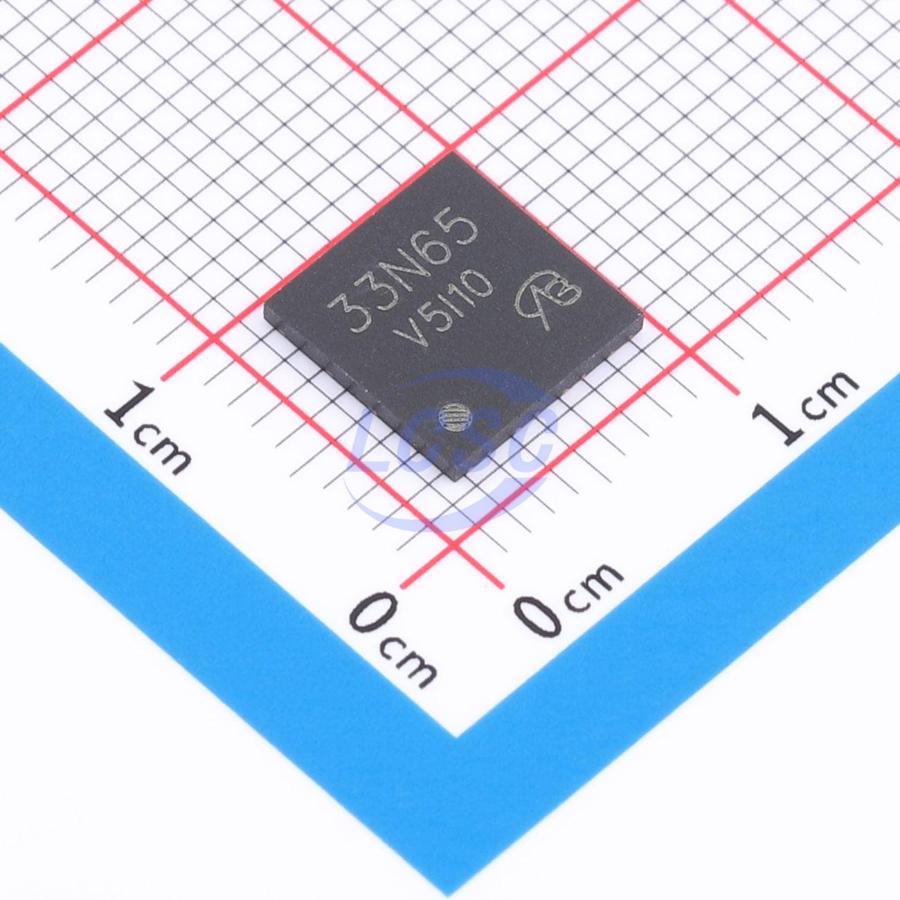

STL33N65M2-VB
90W 650V 20A 160mΩ@10V 1 N-channel N-Channel DFN-8(8x8) Single FETs, MOSFETs
DFN-8(8x8)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STL33N65M2-VB
- Store part #
- C51822609
- Package / case
- DFN-8(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C51822609
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹441.49 | ₹441.49 |
| 10+ | ₹379.22 | ₹3,792.20 |
| 30+ | ₹340.47 | ₹10,214.10 |
| 100+ | ₹283.66 | ₹28,366.00 |
| 500+ | ₹265.59 | ₹1,32,795.00 |
| 1,000+ | ₹257.76 | ₹2,57,760.00 |
1 × ₹441.49
₹441.49
excl. GST
₹520.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STL33N65M2-VB
₹441.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 90W
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.74 g
Overview
Applications
- Server and telecom power supplies
- Switching Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) power supplies
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
