HXY MOSFETDatasheet (PDF)

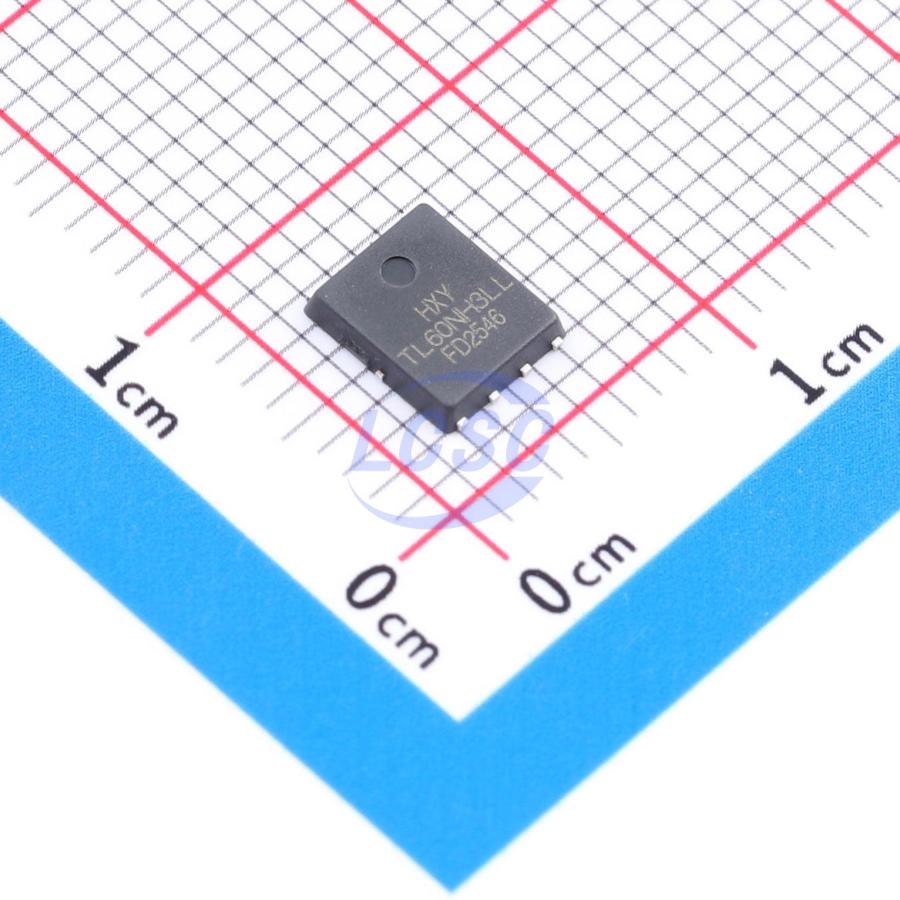

STL60NH3LL-HXY
31W 30V 60A 6.5mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- STL60NH3LL-HXY
- Store part #
- C53263255
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C53263255
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.41 | ₹84.41 |
| 10+ | ₹69.17 | ₹691.70 |
| 30+ | ₹61.64 | ₹1,849.20 |
| 100+ | ₹54.12 | ₹5,412.00 |
| 500+ | ₹49.61 | ₹24,805.00 |
| 1,000+ | ₹47.47 | ₹47,470.00 |
1 × ₹84.41
₹84.41
excl. GST
₹99.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STL60NH3LL-HXY
₹84.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 163pF
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 31W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
