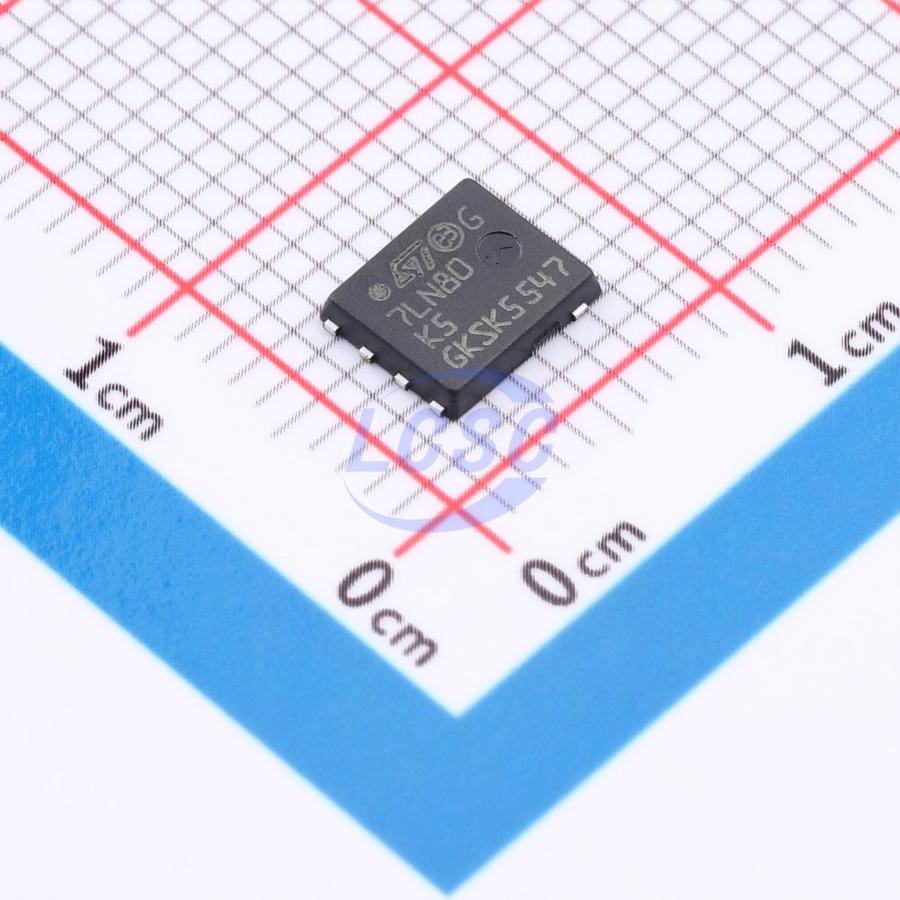

STL7LN80K5

42W 800V 5A 1.15Ω@10V 1 N-channel N-Channel VDFN-8-Power Single FETs, MOSFETs RoHS

VDFN-8-PowerROHS3 CompliantActive

N-channel, Current:5A, Voltage:800V

Manufacturer: ST
Manufacturer part #: STL7LN80K5
Store part #: C2970868
Package / case: VDFN-8-Power
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C2970868

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹442.61	₹442.61
10+	₹432.57	₹4,325.70
30+	₹425.73	₹12,771.90
100+	₹419.10	₹41,910.00

Quantity (min 1)

1 × ₹442.61

₹442.61

excl. GST

₹522.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL7LN80K5

₹442.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 22pF
Ciss-Input Capacitance: 270pF
Pd - Power Dissipation: 42W
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 800V
Current - Continuous Drain(Id): 5A
Reverse Transfer Capacitance (Crss): 0.5pF
RDS(on): 1.15Ω@10V
Number: 1 N-channel
Gate Charge(Qg): 12nC@10V
Vgs: ±30V
Gate Threshold Voltage (Vgs(th)): 5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.28 g

Overview

This ultra-high voltage N-channel power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a significantly reduced on-resistance and ultra-low gate charge, making it ideal for applications demanding superior power density and high efficiency.
