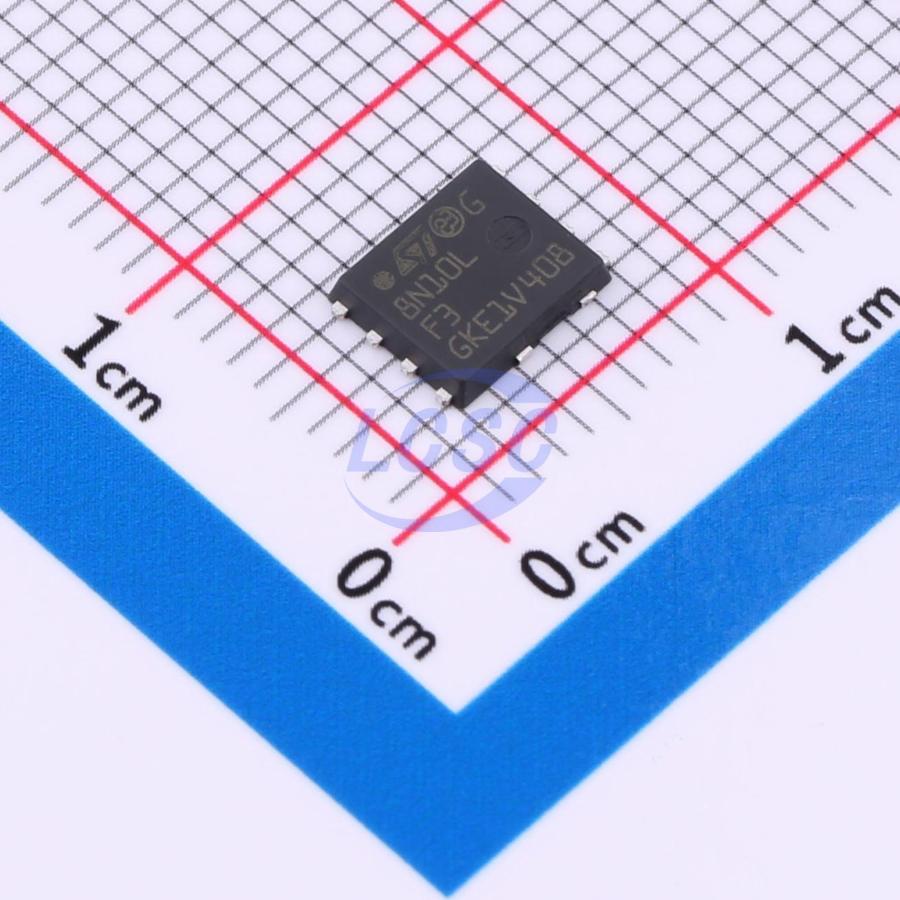

STL8N10LF3

N-Channel 100V 7.8A 70W Surface Mount PowerFLAT-8(5x6)

PowerFLAT-8(5x6)ROHS3 CompliantActive

MOSFET N-CH 100V 7.8A PowerFLAT-8(5x6)

Manufacturer: ST
Manufacturer part #: STL8N10LF3
Store part #: C2969813
Package / case: PowerFLAT-8(5x6)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26 in stock

#C2969813

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹279.67	₹279.67
10+	₹234.69	₹2,346.90
30+	₹206.44	₹6,193.20
100+	₹177.53	₹17,753.00
500+	₹164.50	₹82,250.00
1,000+	₹158.85	₹1,58,850.00

Quantity (min 1)

1 × ₹279.67

₹279.67

excl. GST

₹330.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL8N10LF3

₹279.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 100V
Output Capacitance(Coss): 115pF
Current - Continuous Drain(Id): 7.8A
Ciss-Input Capacitance: 970pF
Pd - Power Dissipation: 70W
Reverse Transfer Capacitance (Crss): 11.5pF
RDS(on): 25mΩ@10V;40mΩ@5V
Number: 1 N-channel
Gate Charge(Qg): 20.5nC@10V
Gate Threshold Voltage (Vgs(th)): 3V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.224 g

Overview

This device is an N-channel power MOSFET developed using STripFET F3 technology. It is designed to minimize on-resistance and gate charge, delivering superior switching performance.

Applications

Switching applications

Key features

AEC-Q101 qualified
Logic-level VGS(th)
Maximum junction temperature 175 °C
100% avalanche rated
Solderable gull-wing package
