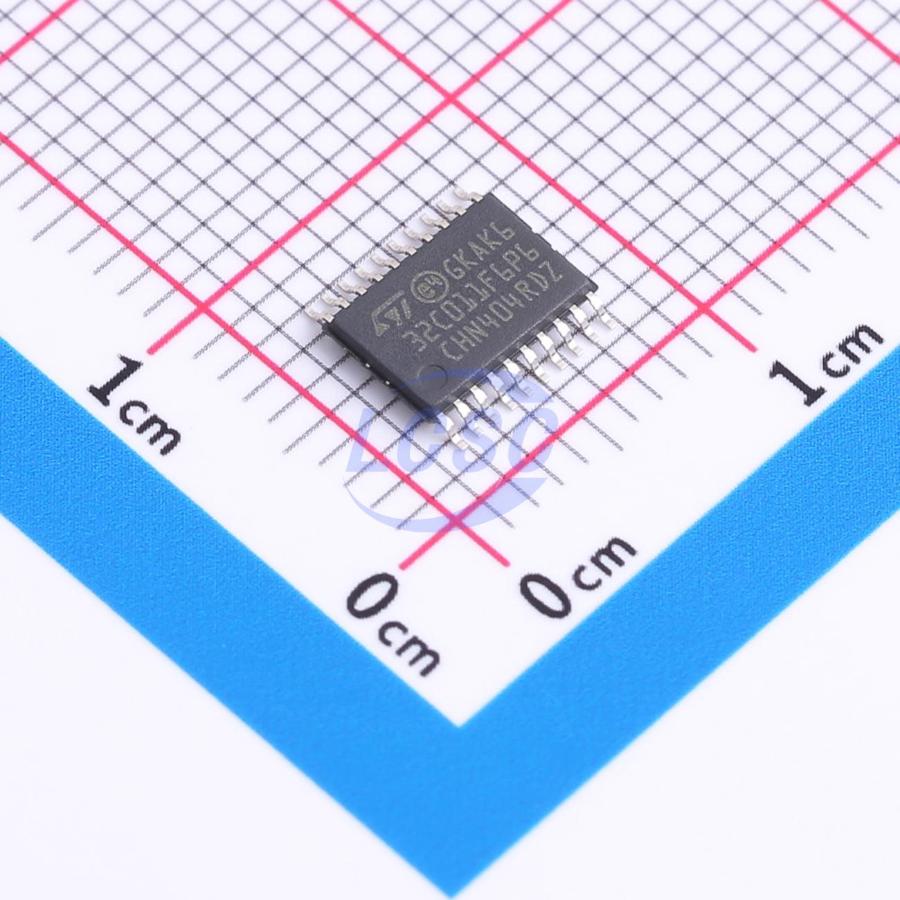

STM32C011F6P6TR

This device is a microcontroller based on the Arm Cortex-M0+ 32-bit core, operating at up to 48 MHz. It integrates up to 32 KB of Flash memory and 6 KB of SRAM with hardware parity. The operating voltage range is 2.0 V to 3.6 V, supporting multiple low-power modes including Sleep, Stop, Standby, and Shutdown. The device offers a rich set of communication interfaces, including two USARTs, one I²C bus interface, and one SPI interface. It also incorporates a 12-bit ADC, multiple timers, an RTC, and a DMA controller. All packages are compliant with green standards.

Key features

• Includes ST state-of-the-art patented technology
• Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 48 MHz
• -40°C to 85°C / 105°C / 125°C operating temperature
• Memories
• Up to 32 Kbytes of flash memory with protection
• 6 Kbytes of SRAM with hardware parity check
• CRC calculation unit
• Reset and power management
• Voltage range: 2.0 V to 3.6 V
• Power-on / power-down reset (POR/PDR)
• Programmable brownout reset (BOR)
• Low-power modes: Sleep, Stop, Standby, Shutdown
• Clock management
• 4 to 48 MHz crystal oscillator
• 32 kHz crystal oscillator with calibration
• Internal 48 MHz RC oscillator (±1%)
• Internal 32 kHz RC oscillator (±5%)
• Up to 18 fast I/Os
• All mappable on external interrupt vectors
• All 5 V-tolerant
• 3-channel DMA controller with flexible mapping
• 12-bit, 0.4 μs ADC (up to 13 ext. channels)
• Conversion range: 0 to 3.6 V
• 8 timers: 16-bit for advanced motor control, four 16-bit general-purpose, two watchdogs, SysTick timer
• Calendar RTC with alarm
• One I²C-bus interface supporting Fast-mode Plus (1 Mbit/s) with extra current sink; supporting SMBus/PMBus and wake-up from Stop mode
• Two USARTs with master/slave synchronous SPI; one supporting ISO7816 interface, LIN, RDA capability, auto baud rate detection and wake-up feature
• One SPI (24 Mbit/s) with 4- to 16-bit programmable bitframe, multiplexed with I2S interface; two extra SPIs through USARTs
• Development support: serial wire debug (SWD)
• All packages ECOPACK 2 compliant
