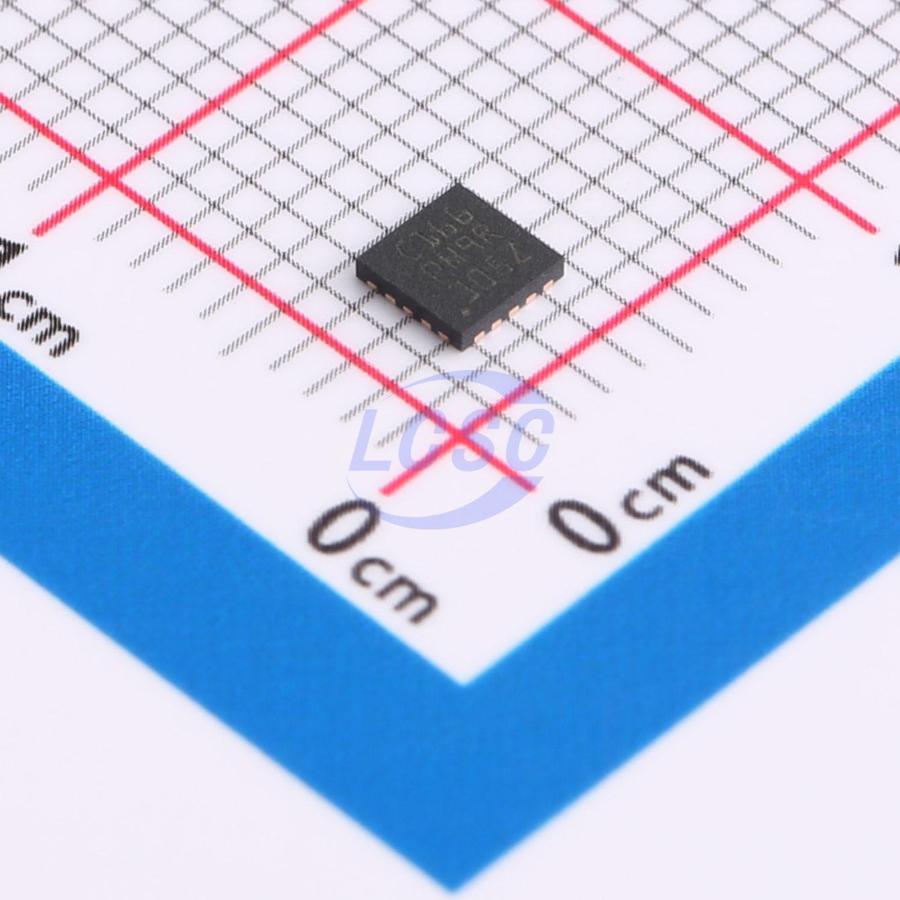

STM32C011F6U6TR

This is a microcontroller featuring an Arm® 32-bit Cortex®-M0+ CPU, available in multiple package options and compliant with the ECOPACK2 standard.

Key features

• Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 48 MHz
• -40°C to 85°C/105°C/125°C operating temperature
• Memories: Up to 32 Kbytes of flash memory with protection; 6 Kbytes of SRAM with HW parity check
• CRC calculation unit
• Reset and power management:
• Voltage range: 2.0 V to 3.6 V
• Power-on/Power-down reset (POR/PDR)
• Programmable Brownout reset (BOR)
• Low-power modes: Sleep, Stop, Standby, Shutdown
• Clock management:
• 4 to 48 MHz crystal oscillator
• 32 kHz crystal oscillator with calibration
• Internal 48 MHz RC oscillator (±1 %)
• Internal 32 kHz RC oscillator (±5 %)
• Up to 18 fast I/Os:
• All mappable on external interrupt vectors
• Multiple 5 V-tolerant I/Os
• 3-channel DMA controller with flexible mapping
• 12-bit, 0.4 µs ADC (up to 13 ext. channels):
• Conversion range: 0 to 3.6 V
• 8 timers: 16-bit for advanced motor control, four 16-bit general-purpose, two watchdogs, SysTick timer
• Calendar RTC with alarm
• Communication interfaces:
• One I²C-bus interface supporting Fastmode Plus (1 Mbit/s) with extra current sink, supporting SMBus/PMBus and wakeup from Stop mode
• Two USARTs with master/slave synchronous SPI; one supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature
• One SPI (24 Mbit/s) with 4- to 16-bit programmable bitframe, multiplexed with I²S interface
• Development support: serial wire debug (SWD)
• All packages ECOPACK2 compliant
