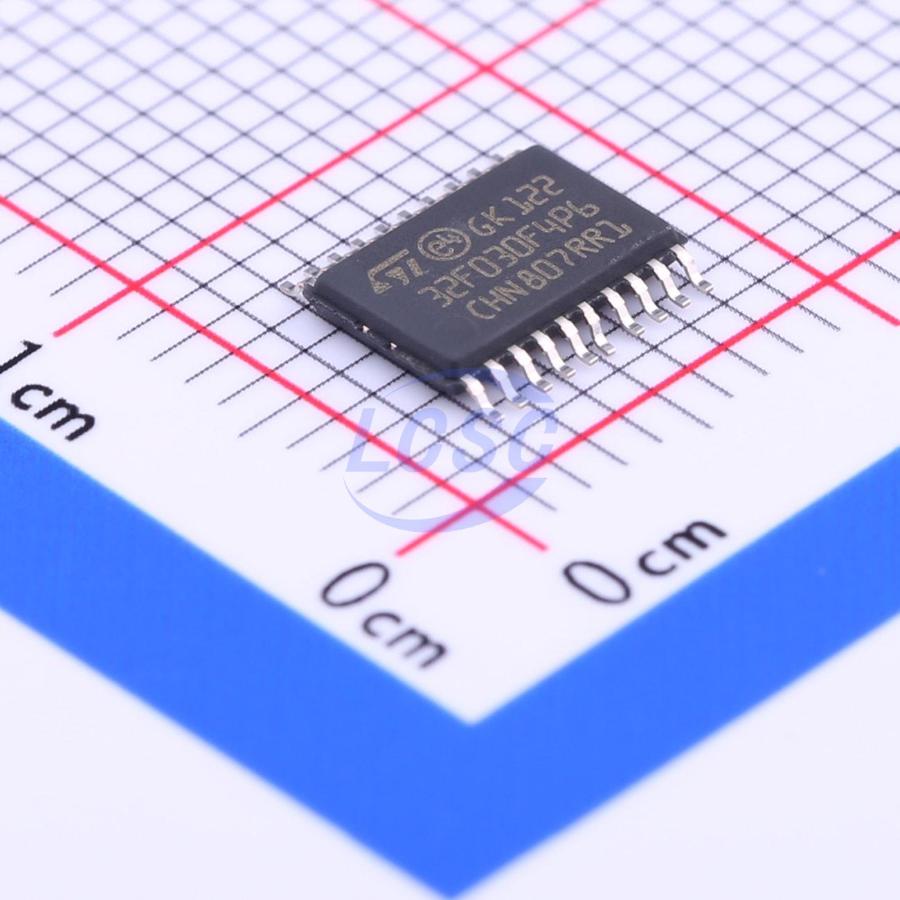

STM32F030F4P6TR

Value-line ARM-based 32-bit MCU with up to 256 KB Flash, timers, ADC, communication interfaces, 2.4 - 3.6 V operation

Key features

• Core: ARM 32-bit Cortex-MO CPU, frequency up to 48 MHz
• Memories - 16 to 256 Kbytes of Flash memory - 4 to 32 Kbytes of SRAM with HW parity
• CRC calculation unit
• Reset and power management - Digital & I/Os supply: VDD = 2.4 V to 3.6 V - Analog supply: VDDA = VDD to 3.6 V - Power-on/Power down reset (POR/PDR) - Low power modes: Sleep, Stop, Standby
• Clock management - 4 to 32 MHz crystal oscillator - 32 kHz oscillator for RTC with calibration - Internal 8 MHz RC with x6 PLL option - Internal 40 kHz RC oscillator
• Up to 55 fast I/Os - All mappable on external interrupt vectors － Up to 55 I/Os with 5V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 μs ADC (up to 16 channels) - Conversion range: 0 to 3.6 V - Separate analog supply: 2.4 V to 3.6 V
• Calendar RTC with alarm and periodic wakeur from Stop/Standby
• 11 timers - One 16-bit advanced-control timer for six-channel PWM output - Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding - Independent and system watchdog timers - SysTick timer
• Communication interfaces - Up to two I²C interfaces Fast Mode Plus (1 Mbit/s) support on one or two I/Fs, with 20 mA current sink SMBus/PMBus support (on single I/F) Up to six USARTs supporting master synchronous SPl and modem control; one with auto baud rate detection Up to two SPls (18 Mbit/s) with 4 to 16 programmable bit frames
• Serial wire debug (SWD)
• All packages ECOPACk?2
